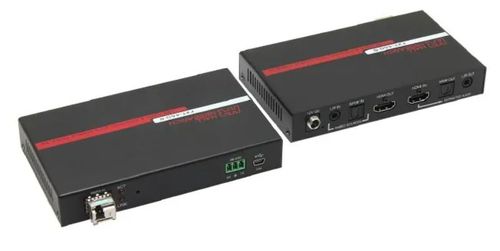

Hall Technologies FXT-460-S, - FXT-460-S

FXT-460-S: 4K HDMI 2.0 Fiber Optic Extender

The Hall Technologies FXT-460 is a compact and high-performance extender for full-bandwidth HDMI 2.0 audio/video with HDR, up to 10 Kilometers, over a single strand of LC-terminated fiber-optic cable.The product supports 18.2 Gbps of bandwidth and 600 MHz TMDS Clock frequency and can extend 4K 60 Hz video with multi-channel audio and RS232.

The system provides advanced capabilities such as embedding and de-embedding audio, 4K UHD video (4:4:4 with HDR), HDCP 2.0, bidirectional RS-232 and EDID management.The FXT-460-S Sender provides an HDMI input with a corresponding HDMI loop output. The audio component of the HDMI input is extracted and available as both analog (L/R) and Digital SPDIF (TOSLINK) on corresponding connectors.

EDID management allows users to control the video and audio parts of the EDID independently. The EDID presented to the source connected to the HDMI input can pass from the downstream device or emulated from internal memory. The device can also “Learn” the EDID connected to its HDMI output. The product has a video bandwidth of 18 Gbps and supports input resolutions of up to 4K @ 60 Hz 4:4:4 with HDR. It supports HDCP 2.2 as well as HDCP 1.4. All resolutions up to and including 4K @ 30Hz with 4:4:4 or 4K @ 60 Hz with 4:2:0 are extended with no compression.

• 4K x 2K @ 60 Hz 4:4:4 / 18.2 Gbps / HDCP 2.2
• Extends up to 33,000 ft (10 Km) over single mode or 1000 ft (300 M) Multi-Mode
• Bi-Directional RS-232 and EDID Management
• Can pass original HDMI audio or embed/substitute audio from external inputs
• HDMI Audio Bridging
• HDMI Loop Output on Sender
• De-embedded HDMI audio available at both ends (Sender and Receiver)
• EDID Emulation with LEARN function
