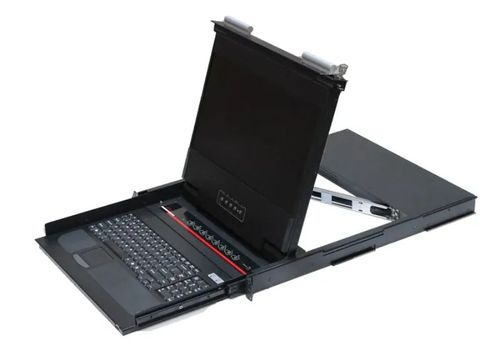

Hall Technologies 8-Port HDMI KVM Switch Console with USB 2.0 and 4K Video Support, - KVMC-UH-8
![Free Shipping](https://s.turbifycdn.com/aah/focusedtechnology/peerless-9-11-adjustable-extension-column-adj0911-52.jpg)
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Hall Technologies KVMC-UH-8 8-Port HDMI KVM Switch w/4K Video Support
The switch provides keyboard and mouse emulation for all 8 PC inputs. It does not matter if a PC is selected on the KVM Switch or not, all host PC’s “see” connection to a keyboard and a mouse. However, the data from the “actual” built-in keyboard and mouse pad are sent to the selected PC. The KVM Switch also provides LCD emulation on all HDMI video inputs. The HDMI outputs from all PCs get a HPD (hot plug detect) signal, as if they were connected directly to an LCD. This reduces the video switching times to 1~2 seconds. Since each PC video always detects a monitor, when switching dual-video PCs, there is no interruption in the video since the Operating System of the PC is unaware of the KVM Switching.
The KVMC-UH-8 also provides an integrated 2-port USB 2.0 Hub with one port on the rear and one on the front. When you select a new PC on the KVM, the USB 2.0 hub connects to the selected PC. The console features 8 individual buttons for selecting inputs. LED indicators show the currently selected input channel and the status of each input. Inputs can also be selected via hot-key sequences from the keyboard. The console provides self-locking rails and automatically lock when the LCD panel is closed to make for the most simple and hassle free operation.
- Enterprise grade performance
- Compact 1U drawer construction mountable in 19” rack
- Built-in LCD supports high resolutions such as 1920×1080, 1920×1200, 2560×1440, 2560×1600 and 3840×2160
- 8 Individual buttons on the front panel for selecting PC inputs
- Emulates keyboard, mouse, and video monitor for each PC
- Fast-switch technology for minimal delay when switching PCs
- Computer OS independent – No driver or software required
- Durable 104-key keyboard and touch pad
- Self-locking and auto release rails for ultra convenience
- Provides USB 2.0 Hub that switches to the selected PC
- Hot-Key Switching
Specifications
Video Standard | HDMI |
Number of inputs | 8 |
Bandwidth | 600 MHz pixel clock or 18 Gbps video data rate |
Max Resolution | 3840 x 2160 @ 60Hz (with 4:4:4 YUV color sampling) |
Built-in LCD | Visible Size: 17.4" diagonal | Aspect Ratio: 16:9 | View Angle: Horiz=140° / Vert=120° |
USB Standard | Version 2.0 |
Connectors | 8x USB Type A Female for Hosts (PCs) | 1x Keyboard Type A Female | 1x Mouse Type A Female | 2x USB 2.0 Peripherals from Built in Hub. Type A Female |
Power Input | 100-240V AC 50/60Hz via standard IEC-Type power connector |
Power Consumption | 5 watts in standby mode (or when display is off), 30 watts maximum |
Temperature / Humidity | Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-condensing | Storage: -4 to +140 °F (-20 to +50 °C) / 10% to 90%, non-condensing |
Cooling | Convection |
Enclosure type | Metal |
Vibration | ISTA 1A in carton (International Safe Transit Association) |
Safety | CE |
EMI/EMC | CE, FCC Class A |
MTBF | 90,000 hours (Calculated Estimate) |
