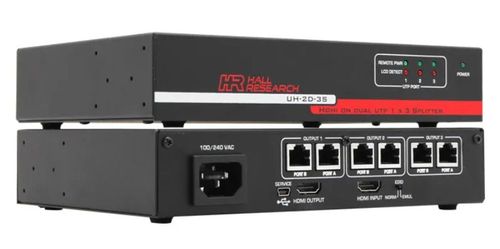

Hall Technologies 3-Port HDMI on Dual UTP Extender, - UH-2D-3S
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
UH-2D-3S: 3-Port HDMI on Dual UTP Extender
Hall Technologies’s Model UH-2D-3S is a member of the Mini-CAT® video extension and distribution product line. The UH-2D-3S is used to extend HDMI™ or DVI video up to 130 ft @ 1080p or 170 ft @ 1080i/720p resolution on 2 Cat6 cables to 3 remote receivers (Model UH-2D-R). The unit provides one local HDMI output and 3 sets of RJ45 pairs for connection to the remote receivers. Cables that are of lower quality and construction will reduce the maximum distance. The UH-2D-3S is compatible with HDMITM versions 1.2a, 1.3 and 1.4 in terms of 3D, deep-color, and 4K video support. The remote receiver (UH-2D-R) includes state of the art automatic equalization to compensate for signal losses in the cables and produces a crisp image as clear as the original. This allows daisy-chaining (to achieve further extension), and produces a crisp image as clear as the original.
The unit is housed in a compact sturdy metal enclosure that is 1RU high. Two can be mounted side-by-side using Hall Technologies Model RMS-1U-1A rack shelf (UH-2D-3S has threaded holes on the bottom for this purpose), or a single unit can be mounted using the Model RMK-05 Rack Mount Kit.
- Compact unit sends uncompressed HDMI video to 3 remote displays on 2 Cat6 cables
- Can drive cables to 130ft @ 1080p or 170 ft @ 1080i/720p on 2 Cat6 cables
- Local HDMI output for direct connection to a local display
- Built-in power supply with standard IEC320 AC power jack
- Supports HDMI 1.4 Deep-Color (up to 12 bits per color) and 3D formats
- Supports PC & HDTV resolutions, VGA~WUXGA and 480p~4Kx2K
- LED indicators for power and status of 3 remotes (power and HPD detection)
- Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
- Includes HDMI input cable
- 1 RU, half-wide compact size with optional mounting tray and ears
- Supports DVI-D single link extension with optional adapter cables
- Intelligent EDID Pass-through or EDID Emulation (user selectable)
- Low power (consumes less than 6 watts fully loaded)
Specifications
Input Port | 1x HDMI Female (Type A) |
Output Ports | 1x HDMI Female (Type A), 3 sets of 2 RJ45 connectors (total of 6 RJ45) |
Power Supply | Internal 90-260 VAC, 50-60 Hz, with IEC320/C14 AC power jack. Actual power consumption: 3.5 ~ 6 watts depending on # outputs plugged in at 1080p |
Video Resolutions | PC Resolutions : VGA - SVGA – XGA – SXGA – UXGA -WUXGA | HDTV Resolutions : 480i - 480p - 720p - 1080i - 1080p, 4Kx2K@30 |
Bandwidth | 10.2 Gbps total (or 3.4 Gbps per color, or 340 MHz TMDS clock) |
Video Standards | HDMI 1.4 (for 3D, Deep-Color & 4K), HDCP1.1 and DVI1.0 |
Audio Formats | All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192kHz sample rate) |
Max UTP Cable Length | Using 23 Gauge Cat6: 480i, 480p, 576i, 576p, 720p, 1080i -- 170 ft (52 m) | 1080p @ 60 Hz 8 bit per color (24 bit) -- 130 ft (40 m) | 1080p deep-color 12 per color (36 bit) -- 80 ft (25 m) | 4Kx2K -- 40 ft (12 m) |
Mounting | Threaded nuts on bottom for rack-shelf mounting or optional rack ears |
Enclosure type | Metal |
Dimensions | 1.66" H x 8.42" W x 6.04" D (42mm H x 214mm W x 154mm D) |
Product weight | Product – 2.5 lbs (0.386kg) |
EMI/EMC | CE, FCC Class A |
MTBF | 90,000 estimated |
