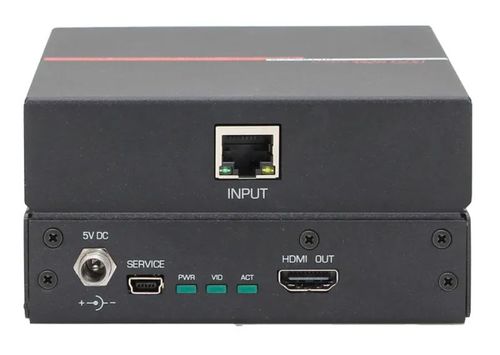

Hall Technologies 4K UHD HDMI Receiver for ULTRA-V Splitter/Extender Series w/o accessories, - ULTRA-V-R-X
![Free Shipping](https://s.turbifycdn.com/aah/focusedtechnology/peerless-9-11-adjustable-extension-column-adj0911-52.jpg)
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Hall Technologies ULTRA-V-R-X 4K UHD HDMI Receiver w/o Accessories
The ULTRA-V series are a family of extenders used to extend HDMI video to one or more remote locations up to 100m (328ft) over a single CAT6 cable. The extenders support various resolutions including 1080p @ 60Hz and 4K UHD @ 30Hz. The Senders are available in three versions. ULTRA-V-1S has a single remote output, ULTRA-V-4S has four, and ULTRA-V-8S has eight. All Senders feature an HDMI input and a local HDMI “loop” output. This allows for connection of a local display, or daisy-chaining the HDMI to another Sender to increase the number of remote displays. The Receivers have a single remote input, and one HDMI output for connection to a remote display.
Key Features- Supports high resolution HDMI video including FHD (1920×1080), WQHD (2560×1440), and 4K UHD (3840×2160)
- Local HDMI outputs at all Senders to connect to a local display, or to daisy-chain a second ULTRA-V Sender
- 1,4, or 8 outputs to distribute video to multiple locations
- ULTRA-V Receivers are compatible with ULTRA-4K Sender
- No video calibration required; no video quality reduction due to cable length
Specifications
Video Standards | DVI (single link) | HDMI 1.4 video specifications including 12 bit color depth, 3D video | HDCP 1.4 |
Connectors | (1) HDMI Input | (1) HDMI Output | (1) RJ45 Output | (1) Mini-USB Service Port | (1) 2.0MM Locking DC Power Input |
Resolutions | DVI Signal: VGA (640x480) thru WUXGA (1920x1200) | HDTV Signal: 480p through 4K60 4:2:0 (Interlaced resolutions are not supported) |
Refresh Rates | 60 Hz for resolutions up to and including HD (1920x1080) and WUXGA (1920x1200) | 30 Hz for resolutions above and including QHD (2560x1440) |
Power Supply | 100 VAC to 240 VAC, 47-63 Hz, External; 5 VDC |
Power | 5V DC, 4.0 A Power Supply |
Cooling | Convection |
Enclosure type | Metal (Steel) |
EMI/EMC | CE, FCC Class A |
MTBF | 90,000 hours (estimate) |
