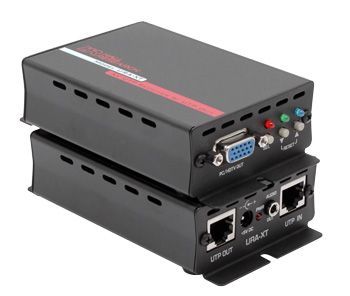

Hall Research VGA + Audio Over UTP with Skew Correction and Extension (Receiver) - URA-XT
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
Video + Audio over UTP Receiver with Daisy-Chain Output
The URA-XT Mini-Cat® is a daisy-chainable Video and Audio over UTP (Cat5/5e/6) receiver. It has an RJ45 input, with a compensated RJ45 output for driving downstream receivers. This eliminates the need for running separate cables from every receiver back to the sender (in star or home-run fashion) – a very useful feature when several receivers are located in a line going away from the sender.
It can accommodate a total daisy-chain length of 3,750 feet (> 1 Km) with up to 5 devices in each chain. supports resolutions up to 1920 x 1200 at 60Hz. The URA-XT can be extended with more URA, URA-SKU or URA-XT receivers. Made in the USA.
Important note about use with YPbPr signalUsing the standard URA-XT with Component Video can produce excessive brightness and contrast. Therefore, this unit is not recommended for use with Component Video (YPbPr).
For use with YPbPr signal, please order the model URA-XT-CP. The cost is the same and the unit is identical to URA-XT in every way except it is optimized for Component Video signal levels.
Key Features- Receives audio and video on a single CATx cable
- Adjustable cable length compensation to 1000 ft
- Digitally controlled adjustment eliminates tweaking pots
- Supports resolutions up to 1920x1200 at any refresh rate
- Up to 3750 feet maximum cable from source to last URA
- Compact & rugged metal enclosure with mounting holes
- Daisy-chain upto 5 URA-Xt's in a single run
- The URA-SKU and URA-XT units have RGB skew correction
Specifications
| Video Gain: | Unity |
| Video Standards: | VGA through UXGA, RGBHV, RGBS, RGsB, RsGsBs, Component Video (bi-/tri-level sync) |
| Connectors: | (1) RJ-45 Female (CATx Input) (1) RJ-45 Female (CATx Output) (1) HD15 Female (Video Output) (1) 3.5mm Female (Audio Output) (1) 2.1mm Female (Power Input) |
| Nominal Amplitude: | 1 V p-p for Y of component video 0.7 V p-p for RGB and for Pr and Pb of component video 4.0 V to 5.0 V p-p, for TTL Sync signals of RGBHV, RGBS |
| Impedance: | 75 ohms |
| Skew Compensation: | 65 nS |
| Resolution: | Up to 1920x1200 non-interlaced at 60Hz |
| Max Distance: | Up to 1000 feet depending on resolution |
| Audio Gain: | Unbalanced output: 0 dB |
| Frequency Response: | 20hz to 20kHz, +/- 1 dB |
| Audio Type: | Monaural, Simulated Stereo (L+R) |
| THD + Noise: | 0.2% @ 1kHz, 0.3% @ 20kHz at nominal level |
| Recommended Cable: | CAT 5/5e/6 (shielded or unshielded) for URA-XT and URA-SKU |
| Power Supply: | 100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2A regulated; 2.1mm |
| Temperature Humidity: | Storage: -40 to +158 degF (-40 to +70 degC) / 10% to 90%, non-condensing Operating: +32 to +122 degF (0 to +50 degC) / 10% to 90%, non-condensing |
| Cooling: | Convection, vents on each end |
| Mounting: | Brackets at each end with screw hole provided for Wall or Rack mounting |
| Enclosure: | Metal |
| Dimensions: | 1.18" H x 2.75" W x 3.85" D (30mm H x 70mm W x 98mm D) Depth excludes connectors |
| Weight: | Product - 0.75 lb (0.35 kg) Shipping - 1.5 lbs (0.70 kg) |
| Vibration: | ISTA 1A in carton (International Safe Transit Association) |
| Safety: | CE |
| EMI/EMC: | CE/FCC Class A |
| MTBF: | 90,000 hours |
| Warranty: | 2 years parts and labor |
