Hall Research Video Over UTP Decora Plate Sender with Local Port - UV1-S-DP

Hall Research Video Over UTP Decora Plate Sender with Local Port - UV1-S-DP

Part Number: UV1-S-DP
Our Price: $264.38
This Item Is Discontinued
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

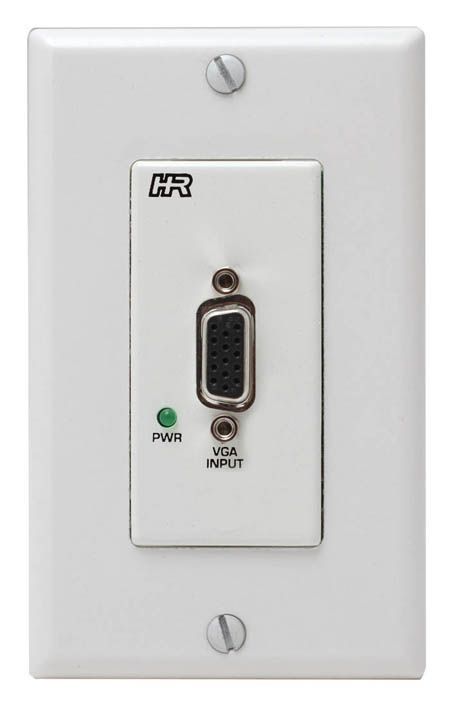

Video Over UTP Decora Plate Sender with Local Port

The UV1-SL-DP transmits VGA over a single UTP cable to any compatible UV1 receiver up to 500 ft away with little to no degradation of video quality. The unit is housed in a standard single-gang Decora™ sized plate which can be mounted in a wall or pop-up. UV1-SL-DP does not require power supply connection since it powered via the UTP cable from the remote unit. The wall plate features a buffered loop-thru VGA output port for connection to a local monitor.

Key Features
  • Send VGA signal up to 500 feet over UTP cable
  • Buffered VGA output for local monitor
  • Powered over UTP
  • Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for High-Resolution A/V extension
  • Amplifies the signal for clean and crisp transmission
  • Differential signaling eliminates ground loops and noise
  • Handles resolutions up to 1920x1440 at 60Hz
  • Standard single-gang Decora plate form factor

Specifications

Dimensions:Single gang Decora Plate
Max Distance:500 ft
Max Resolution:1920x1440 @ 60 Hz
Video Types:VGA through UXGA, RGBS, RGsB (sync on green), or YpbPr
