Hall Research VGA Over UTP (Sender & Receiver) - UV1

Hall Research VGA Over UTP (Sender & Receiver) - UV1

Part Number: UV1
Our Price: $373.58
This Item Is Discontinued
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Mini-Cat Video + Power Over UTP Extension

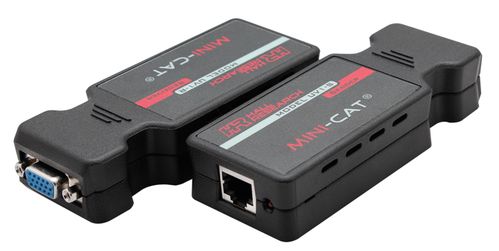

The UV1 is a single channel VGA video extender kit consisting of a sender (UV1-S) and a receiver (UV1-R). The sender converts a PC's VGA signal into a format that can be transmitted using a single inexpensive and commonly available Category-5 Unshielded Twisted Pair (UTP) cable with RJ45 connectors. The Cat5 signal is converted at the receiver back to VGA for connection to your monitor, projector or other display device. The UV1 can extend HD video up to 500 feet (150 meters) with little to no degradation of video quality.

The sender and receiver are each housed in a small plastic enclosure. Included with the pair of devices are: one small power adapter (can be powered at either end), and a short adapter cable for easy connection to the standard HD-15 connector of the PC.

Key Features
  • Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for High-Resolution A/V extension
  • Amplifies the signal for clean and crisp transmission
  • Differential signaling eliminates ground loops and noise
  • Handles resolutions up to 1920x1440 at 60Hz
  • Rugged, Reliable, Compact size
  • Only one end requires power in most applications. Power supply can be connected at the sending or the receiving end, whichever convenient.
  • Drive standard Cat5 cables to 500 feet for (VGA and Component Video) or to 2000 feet for (Composite Video and Audio)
  • EDID Emulation available in both standard and custom programming

Specifications

Dimensions:UV1-Sender & UV1-Receiver each
0.8" H x 1.7" W x 4.5" D
Weight:2 lbs. (shipping)
Power Supply:From utility-power (mains) outlet, through included external power adapter. Output Voltage: 9v DC Center-Positive. Current requirement 500 ma max
Max Distance:Up to 500 ft. (150 m) for VGA and Component Video models, or 2000 ft (609 m) for Composite Video and Audio models
Resolution:Up to 1920x1440 non-interlaced at 60Hz
Standards:VGA, SVGA, XGA, or UXGA video
Video Types:VGA through UXGA, RGBS, RGsB (sync on green), or YpbPr
