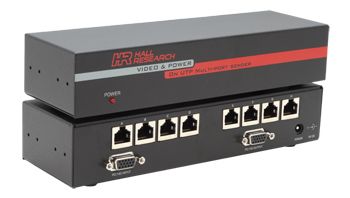

Hall Research 1x8 VGA + Power Over UTP Splitter (Sender) - UV8-S

Video and Phantom Power over UTP Extender

The Model UV8-S is a 4-channel video splitter that can send a VGA or component video signal to multiple displays on CATx cable. This unit features a standard HD15 VGA connector for the input and has 8 RJ45 connectors for the outputs. It also provide an additional HD15 VGA connector for a local monitor.

The UV8-S can drive UTP cables of lengths up to 500 feet. At the remote (receiving) end of the cable, a model # UV1-R is required to convert the UTP cable signal back to video for connection to a monitor.

In most setups only one power supply is necessary for the entire system.

The UV8-S Sender/Splitter comes with a power supply that is capable of powering itself and all the UV1-R receivers.

For Cat5 runs of over 300 feet, the receivers may need their own additional supplies that must be ordered separately (HRT model # 511-21148-2709-T3).

Made in the USA.

• Support for local monitor at transmitter
• Multiple Cat-5 outputs
• Transmit video and phantom power on a single CATx cable
• Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for high-resolution video extension
• Amplifies the signal for clean and crisp transmission
• Differential signaling eliminates ground loops and noise
• Handles resolutions up to 1920x1200 at 60Hz
• Rugged, Reliable, Compact size
• Single power supply fpr transmitter and all UV1-R receivers (under 300 ft)
• Drive standard CATx cables to 500 feet for VGA and Component Video
