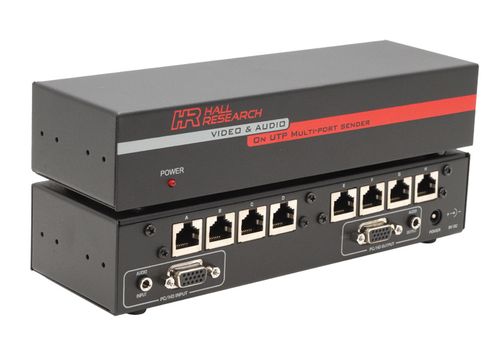

Hall Research 1x8 VGA + Audio Over UTP Splitter (Sender) - UVA-8

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1x8 VGA + Audio Over UTP Splitter (Sender)

The UVA-8 Mini-Cat® is an 8 port Video and Audio over UTP (Cat5/5e/6) splitter/transmitter. The UVA-8 Mini-Cat® can transmit the Video and Audio to 8 independent locations up to 1,000 feet each.The UVA-8 Mini-Cat® supports resolutions up to 1920x1440 at 60Hz. Made in the USA.

Key Features

Support for local monitor at transmitter
Multiple Cat5 outputs
Transmit video and audio on one cable
Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for High-Resolution A/V extension
Amplifies the signal for clean and crisp transmission
Differential signaling eliminates ground loops and noise
Handles resolutions up to 1920x1440 at 60Hz
Rugged, Reliable, Compact size
Drive standard Cat5 cables to 1,000 feet

Specifications

Dimensions:	1.32" H x 7.58" W x 3.88" D (UVA-8 has 2 L-shaped mounting ears that protrude 0.88" beyond the main box on each side). 4 mounting holes are present on a rectangular pattern of 8.62" x 2.63"
Weight:	4 lbs. (shipping)
Power Supply:	From utility-power (mains) outlet, through included external Universal power supply. Output Voltage: 6V DC Center-Positive. Do not substitute any other external power supply without contacting the factory first
Max Distance:	Up to 1000 feet
Resolution:	Up to 1920x1440 non-interlaced at 60Hz
Standards:	VGA through UXGA, RGBS or RGB
Video Types:	VGA through UXGA, RGBS, RGsB (sync on green), or YpbPr
