JBL High Power Single 15" Subwoofer (White) - ASB6115-WH

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

High Power Single 15" Subwoofer

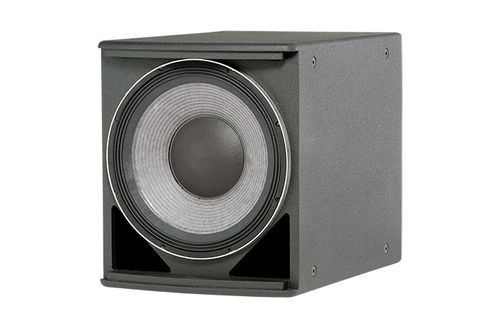

Note: This item is white, unlike the speaker shown

The ASB6115 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2265H-1 Differential Drive® dual voice coil dual gap 15" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.

Features

2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
800 watts continuous pink noise, 3200 watts peak power handling capacity
Large vent area for high output with low distortion
For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products

Specifications

Frequency Range (-10 dB)	32 Hz - 1 kHz
Frequency Response (± 3 dB)	42 Hz - 1 kHz
Transducer Power Rating	800 W (3200 W peak), 2 hrs.
Long-Term System Power Rating	675 W (2700 W peak), 100 hrs.
Maximum SPL (1m)	35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity	35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance	8 ohms
Low Frequency Driver	1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Specifications	Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical cabinet orientation)	483 x 419 x 597 mm (19.0 x 16.5 x 23.5 in)
Net Weight	20.6 kg (45.5 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers.
