Home / JBL / JBL High Power Subwoofer 1 x 18" 2242H SVG™ Driver - ASB6118

JBL High Power Subwoofer 1 x 18" 2242H SVG™ Driver - ASB6118

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

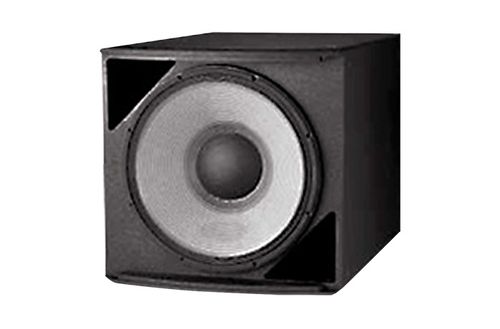

High Power Subwoofer 1 x 18" 2242H SVG™ Driver

ASB6118 is a high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.

Features

Large vent area for high output.
Arrays with AM7200 mid-high loudspeakers (using PAF-2K planar array frame kit) Arrays with AM2212 full-range speakers (using PAF-1K planer array frame kit). See Array Guide.
For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

Specifications

Frequency Range	28 Hz – 1 kHz (-10 dB)
Frequency Response	35 Hz – 1 kHz ( ± 3 dB)
Transducer Power Rating (AES)	1200 W (4800 W peak), 2 hrs
Long-Term System Power Rating (IEC)	800 W (3200 W peak), 100 hrs
Maximum SPL	30 Hz – 100 Hz: 129 dB-SPL cont avg (135 dB peak) 100 Hz – 500 Hz: 129 dB-SPL cont avg (135 dB peak)
System Sensitivity (dB-SPL, 1W @ 1m)	30 Hz – 100 Hz: 98 dB 100 Hz – 500 Hz: 98 dB
Nominal Impedance	8 ohms
