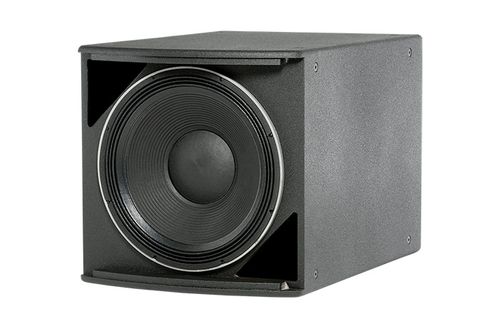

JBL Ultra Long Excursion High Power Single 18" Subwoofer - ASB7118

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Ultra Long Excursion High Power Single 18" Subwoofer

The ASB7118 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofer. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").

Features

2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
2000 watts continuous pink noise, 8000 watts peak power handling capacity
Ultra Long Excursion
Large vent area for high output with low distortion
For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products

Specifications

Frequency Range (-10 dB)	22 Hz - 1 kHz
Frequency Response (± 3 dB)	34 Hz - 1 kHz
Transducer Power Rating	2000 W (8000 W peak), 2 hrs
Long-Term System Power Rating	1200 W (4800 W peak), 100 hrs.
Maximum SPL (1m)	25 Hz - 200 Hz: 129 dB-SPL cont avg (135 dB peak)
System Sensitivity	25 Hz - 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance	8 ohms
Low Frequency Driver	1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive® VGC™ driver
Enclosure	Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
Suspension Attachment	16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
Finish	Black DuraFlex™ finish. White available upon request.
Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Environmental Specifications	Mil-Std 810; IP-x3 per IEC529.
Dimensions (H x W x D in vertical cabinet orientation)	546 x 560 x 815 mm (21.5 x 22.0 x 32.1 in)
Net Weight	42.9 kg (94.5 lb)
Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers.
