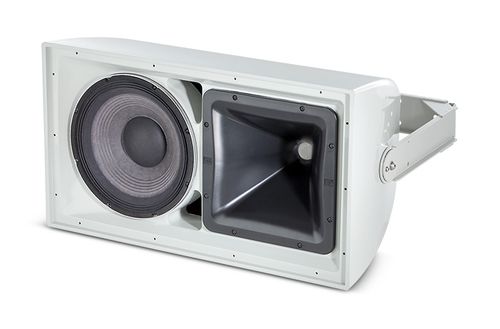

JBL High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn for Life Safety Applications (White) - AW295-LS
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn for Life Safety Applications
The AW295-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation.
Features- Weather-Resistant, All Fiberglass Enclosure
- EN54-24 Compliant
- 90° x 50° Coverage
- 2262H Differential Driver® Low- Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable wave guide for vertical or horizontal orientation
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
- Sports Facilities
- Themed Entertainment Venues
- Outdoor Entertainment Centers
- Cruise Ships
- Water Parks
Specifications
| Frequency Range (-10 dB) | 74 Hz – 20 kHz | |||||||||||||||
| Frequency Response (±3 dB) | 106 Hz – 18 kHz | |||||||||||||||
| Coverage Pattern | 90° x 50°, rotatable waveguide | |||||||||||||||
| ||||||||||||||||
| Directivity Factor (Q) | 12.6 | |||||||||||||||
| Directivity Index (DI) | 11 dB | |||||||||||||||
| Crossover Frequency | 1.3 kHz | |||||||||||||||
| Long-Term System Power Rating (IEC) | 400 W (1600 W peak), 100 hrs | |||||||||||||||
| Maximum SPL | 125 dB-SPL cont avg (131 dB peak) | |||||||||||||||
| Maximum SPL (@ 4m) | 111.92 dB | |||||||||||||||
| System Sensitivity (1W @ 1m) | 98 dB SPL | |||||||||||||||
| Sensitivity (1W @ 4m) | 85.9 dB SPL | |||||||||||||||
| 70V / 100V Transformer Taps | 70V: 400 W, 200 W, 100W 100V: 400W, 200W | |||||||||||||||
| Low Frequency Driver | 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil | |||||||||||||||
| Nominal Impedance | 8 ohms | |||||||||||||||
| Sensitivity (1W @ 1m, within operational band) | 96 dB SPL | |||||||||||||||
| High Frequency Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil | |||||||||||||||
| Nominal Impedance | 8 ohms | |||||||||||||||
| Sensitivity (1W @ 1m) | 113 dB SPL | |||||||||||||||
| Waveguide | PT-H95HF-1 | |||||||||||||||
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK) | |||||||||||||||
| Suspension Attachment | 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety. | |||||||||||||||
| Grille | Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh. | |||||||||||||||
| Input Connector | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. | |||||||||||||||
| Environmental Specifications | IP55C per IEC529 | |||||||||||||||
| Dimensions (H x W x D in horizontal cabinet orientation) | 409 x 732 x 452 mm (16.1 x 28.8 x 17.8 in) | |||||||||||||||
| Net Weight | 25.2 kg (55.5 lb) | |||||||||||||||
