JBL High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn (White) - AW566
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description

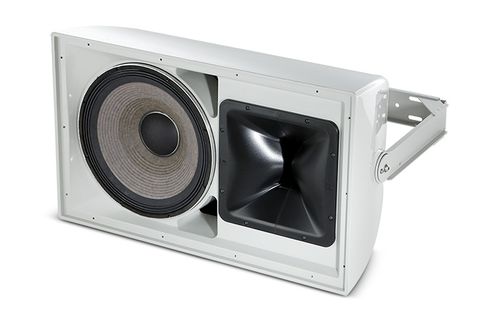

The AW566 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize low frequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW566 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
Features- Weather-Resistant, All Fiberglass Enclosure
- 60° x 60° Coverage
- 2265H-1 Differential Driver® Low- Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
- Sports Facilities
- Themed Entertainment Venues
- Outdoor Entertainment Centers
- Cruise Ships
- Water Parks
Specifications
| Frequency Range (-10 dB) | 35 Hz – 20 kHz |
| Frequency Response (±3 dB) | 54 Hz – 18 kHz |
| Coverage Pattern | 60° x 60° |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| Long-Term System Power Rating (IEC) | 600 W (2400 W peak), 100 hrs |
| Maximum SPL | 128 dB-SPL cont avg (134 dB peak) |
| System Sensitivity (1W @ 1m) | 100 dB SPL |
| 70V/100V Transformer Taps | 70V: 400 W, 200 W, 100W 100V: 400W, 200W |
| Low Frequency Driver | 1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| LFD Nominal Impedance | 8 ohms |
| LFD Sensitivity (1W @ 1m, within operational band) | 98 dB SPL |
| High Frequency Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| HFD Nominal Impedance | 8 ohms |
| Sensitivity (1W @ 1m) | 113 dB SPL |
| Waveguide | PT-H66HF-1 |
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (black available) |
| Suspension Attachment | 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety. |
| Grille | Three layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh. |
| Input Connector | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. |
| Environmental Specifications | IP56 per IEC 529 |
| Dimensions (H x W x D in horizontal cabinet orientation) | 485 x 810 x 478 mm (19.1 x 31.9 x 18.8 in) |
| Net Weight | 28.3 kg (62.5 lb) |
