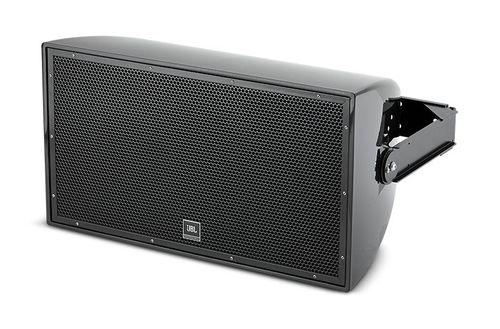

JBL High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn (Black) - AW595-BK
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.
Description
The AW595 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The AW595 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
Features- Weather-Resistant, All Fiberglass Enclosure
- 90° x 50° Coverage
- 2265H-1 Differential Driver® Low- Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable wave guide for vertical or horizontal orientation
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
- Sports Facilities
- Themed Entertainment Venues
- Outdoor Entertainment Centers
- Cruise Ships
- Water Parks
Specifications
| Frequency Range (-10 dB) | 35 Hz – 20 kHz |
| Frequency Response (±3 dB) | 55 Hz – 19 kHz |
| Coverage Pattern | 90° x 50°, rotatable waveguide |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Crossover Frequency | 1.2 kHz |
| Long-Term System Power Rating (IEC) | 600 W (2400 W peak), 100 hrs |
| Maximum SPL | 128 dB-SPL cont avg (134 dB peak) |
| System Sensitivity (1W @ 1m) | 100 dB SPL |
| 70V/100V Transformer Taps | 70V: 400 W, 200 W, 100W 100V: 400W, 200W |
| Low Frequency Driver | 1 x JBL 2265H 380 mm (15 in.) Differential Drive driver with 75 mm (3 in) dual voice coil |
| LFD Nominal Impedance | 8 ohms |
| LFD Sensitivity (1W @ 1m, within operational band) | 98 dB SPL |
| High Frequency Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| HFD Nominal Impedance | 8 ohms |
| HFD Sensitivity (1W @ 1m) | 113 dB SPL |
| Waveguide | PT-H95HF-1 |
| Enclosure | Hand-Laminated Fiberglass, gray gelcoat (black available) |
| Suspension Attachment | 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety. |
| Grille | Three layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh. |
| Input Connector | CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. |
| Environmental Specifications | IP56 per IEC 529 |
| Dimensions (H x W x D in horizontal cabinet orientation) | 485 x 810 x 478 mm (19.1 x 31.9 x 18.8 in) |
| Net Weight | 28.3 kg (62.5 lb) |
