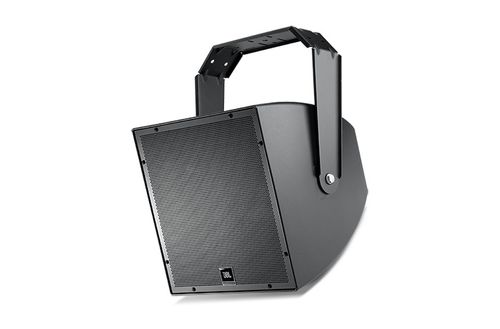

JBL All-Weather Compact 2-Way Coaxial Loudspeaker with 12" LF (Black) - AWC129-BK

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

All-Weather Compact 2-Way Coaxial Loudspeaker with 12" LF

The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

Features

Highly weather-resistant IP56 rating
Consistent 90° x 90° broadband pattern control
Components:

300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.

Extraordinary clarity for speech, with extended frequency response for music.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
High-power passive crossover network.
Overload protection
55 Hz – 20 kHz frequency response.
200 Watt 70V/100V multi-tap (built-in transformer) direct 8? low-impedance.

Specifications

Frequency Range (-10 dB)	55 Hz – 20 kHz
Frequency Response (±3 dB)	80 Hz – 20 kHz
Coverage Pattern	90° x 90°
Directivity Factor (Q)	10.1 (1 k – 16 kHz)
Directivity Index (DI)	9.5 dB (1k – 16 kHz)
Long-Term System Power Rating (IEC)	400 W (1600 W peak), 2 hrs. 250 W (1000 W peak), 100 hrs
Sensitivity (2.83V @ 1m)	96 dB (Ave. 80 Hz – 20 kHz)
Maximum SPL	Direct 8?: 122 dB (peaks of 128 dB) 200 W Tap: 119 dB
Crossover Network	1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance	8 ohms
Transformer Taps	70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W
Low Frequency Driver	Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
High Frequency Driver	25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
HF Driver Protection	Minimum audibility SonicGuard™ HF overload protection
Enclosure	ABS with Glass enclosure, heavily braced
Attachment	Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
Grille	Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing.
Input Connection	CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
Environmental	IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
Dimensions	402 x 402 x 445mm (15.8 x 15.8 x 17.5 in), cabinet 470 mm (18.5 in) depth with gland nut 542 mm (21.4 in) including bracket extending to back
Colors	Available in gray (similar to Pantone 420C) and black (-BK)
Net Weight	15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket
Shipping Weight	23.4 kg (51.5 lbs)
Included Accessories	U-bracket, matches loudspeaker color (gray or black), zinc-rich extra thick powder coated, steel.
