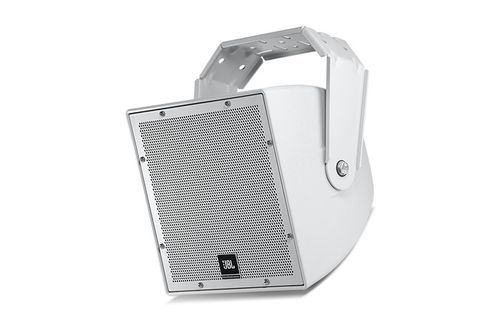

JBL All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LF - AWC82

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

All-Weather Compact 2-Way Coaxial Loudspeaker with 8" LF Features

Highly weather-resistant IP56 rating
Consistent 120° x 120° broadband pattern control
Components:

200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil.
25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.

Extraordinary clarity for speech, with extended frequency response for music.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
High-power passive crossover network.
Overload protection
80 Hz – 20 kHz frequency response.
200 Watt 70V/100V multi-tap (built-in transformer) or direct 8? low-impedance.

Specifications

Frequency Range (-10 dB)	80 Hz – 20 kHz
Frequency Response (±3 dB)	100 Hz – 20 kHz
Coverage Pattern	120° x 120°
Directivity Factor (Q)	8.1 (1 k – 16 kHz)
Directivity Index (DI)	8.4 dB (1 k – 16 kHz)
Long-Term System Power Rating (IEC)	250 W 2 hrs. 200 W 100 hrs
Sensitivity (2.83V @ 1m)	94 dB (Ave. 100 Hz – 20 kHz)
Maximum SPL Direct 8?:	118 dB (peaks of 124 dB) 200 W Tap: 117 dB
Crossover Network	1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance	8 ohms
Transformer Taps	70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W
Low Frequency Driver	Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.
High Frequency Driver	25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
HF Driver Protection	Minimum audibility SonicGuard™ HF overload protection
Enclosure	ABS with Glass enclosure, heavily braced
Attachment	Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
Grille	Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
Input Connection	CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
Environmental	IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
Dimensions	300 x 300 x305 mm (11.8 x 11.8 x 12.0), cabinet 331 mm (13.0 in) including gland nut 359 mm (14.2 in) including bracket extending to back
Colors	Available in gray (similar to Pantone 420C) and black (-BK)
Net Weight	9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket
Shipping Weight	14.1 kg (31.0 lb)
Included Accessories	U-bracket, matches loudspeaker color (gray or black), zinc-rich extra thick powder coated, steel.
