JBL Dual 15" Two-Way Front of House Passive Speaker , - JRX225

JBL Control 312CS High-Output 12 in. In-Ceiling Subwoofer Loudspeaker

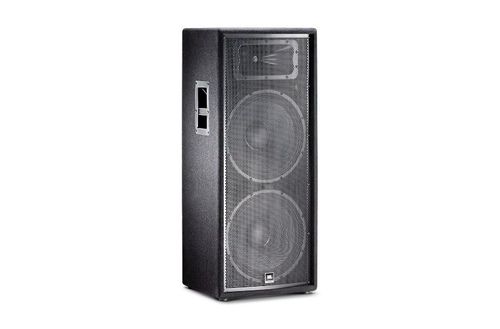

The JRX225 is a portable, dual fifteen-inch, two-way speaker system designed specifically for applications in live music performance and music playback. A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage

• Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
• JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability
• The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region
• High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating
• Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response
• The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance
• SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance
• Non-resonant, all-steel handles are used
• Attractive 18-gauge perforated, steel grille protects components from damage

• Product Data Sheet
