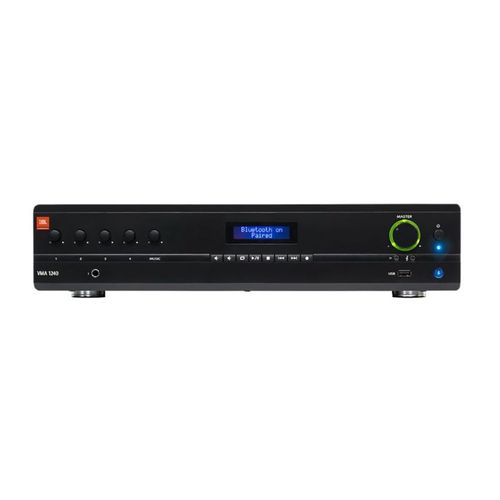

JBL VMA1240, - NVMA1240-0-US

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

JBL NVMA1240-0-US

The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4?, 8?) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

Key Features

5 inputs with 1 output of 60, 120, or 240-watts of power
Independent bass and treble controls for each output channel
100V and 70V output, or 4?/8?
Paging Chime, and Priority muting
Works with JBL CSR-V wall controllers
Balanced mic/line inputs; RCA (.775V) inputs
Rack mounting hardware included

Specifications

Max Output Power per Channel	into 4 ? or 8 ?; 1kHz, ? 0.5% THD - VMA160: 60W VMA1120: 120W VMA1240: 240W
Insertion Loss	(70V & 100V outputs) 1dB maximum
Number of Inputs	5
Number of Outputs	1
Tone Controls	Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
Input Sensitivity	Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
Frequency Response	4/8 ? Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
Total Harmonic Distortion (THD)	Power Amp Output: <0.5%, 20Hz - 20kHz
Signal to Noise Ratio	>76dB
Input Impedance	(nominal) Mic: 400 ? Line: 20 k? (balanced) RCA: 50 k?
Phantom Power	27VDC
