Description

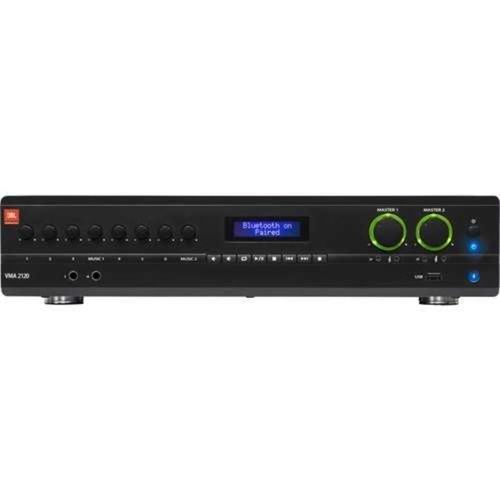

JBL VMA 2120 8-input Commercial Mixer-Amplifier with Bluetooth

The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

Key Features

Increases the strength of a weak electrical signal without affecting other characteristics
Soothe yourself with low subs and soaring vocals at 20 Hz - 20 kHz frequency
The sound moves around at 8 Ohm impedance - a joyful journey to audio pitching and loudness
Showcases 2 audio channels with 240 W RMS output power

Specifications

Max Output Power per Channel	into 4 ? or 8 ?; 1kHz, ? 0.5% THD - VMA260: 60W VMA2120: 120W
Insertion Loss	(70V & 100V outputs) 1dB maximum
Number of Inputs	8
Number of Outputs	2
Tone Controls	Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz (to obtain full rated power into 8 ? load)
Input Sensitivity	Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
Frequency Response	4/8 ? Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
Total Harmonic Distortion (THD)	(measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz - 20kHz
Signal to Noise Ratio	(Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted) >76dB
Input Impedance	(nominal) Mic: 400 ? Line: 20 k? (balanced) RCA: 50 k?
Phantom Power	27VDC
