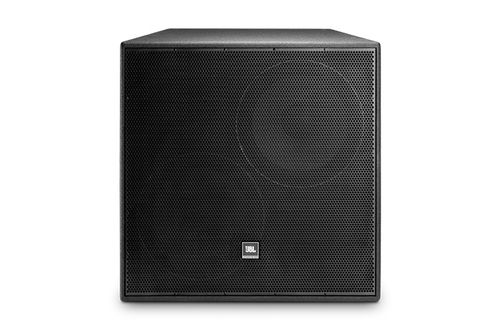

JBL High Output, Dual 15" Low-Frequency / Subwoofer Loudspeaker - PD525S

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

High Output, Dual 15" Low-Frequency / Subwoofer Loudspeaker

The PD525S is a high power low frequency loudspeaker comprised of two 380 mm (15 in) Dual Coil - Dual Gap Differential Drive®, VGC™ low frequency drivers in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points.

Features

Two high power 380 mm (15 in) low frequency drivers
Low frequency extension to 40 Hz
Enclosure dimensions compatible with all PD500 Series models

Applications

Sports Facilities
Performance spaces
Auditoriums
Worship facilities

Specifications

Frequency Range (-10 dB)	28 Hz to 3.8kHz
Frequency Response (±3 dB)	40 Hz to 1.1kHz
Transducer Power Ratings (AES)	2000 W (8000 W peak) 2 hrs
System Power Rating	TBD
Sensitivity (1W @ 1m)	102 dB (avg 40-1kHz)
Maximum SPL	135 dB cont (141 dB peak)
Input Modes	Drivers Parallel/Drivers Discrete
Nominal Impedance	4 ohms in parallel-drive mode, 2 x 8 ohms in discrete drive mode
Low Frequency Driver	2 x JBL 2275H 380 mm (15 in) Dual Coil - Dual Gap Differential Drive®, VGC™ drivers with 75 mm (3 in) voice coil
Enclosure	Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood.
Suspension Attachment	20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Finish	Black DuraFlex™ finish. White (-WH) available upon request.
Optional Weather Resistant Versions	WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperature. See WRC/WRX configuration sheet for details.
Grille	Powder coated 14 gauge perforated steel, acoustically transparent backing
Input Connectors	CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
Environmental Specifications	Mil-Std 810; IP-x3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D in vertical orientation)	782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in)
Net Weight	53.4 kg (118 lb)
Optional Accessories	229-00009-01 kit of three M10 x 35 mm forged shoulder steel eyebolts.
