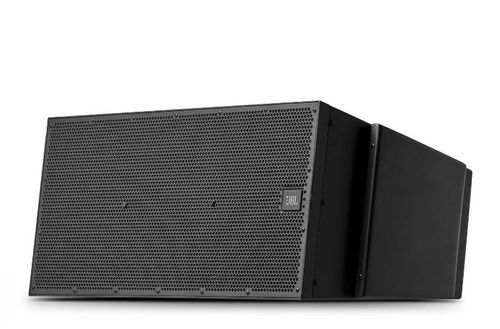

JBL Two-way horn-loaded line array system. 100° horizontal coverage. Gray., - VLA-C2100-GR

JBL VLA-C2100 Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive® LF

The VLA-C2100 uses JBL proven technology components. The high frequency section is horn-loaded for maximum sensitivity and optimum pattern control and features three D2415 drivers featuring 1.5” diameter annular diaphragms, 1.5” voice coils, and neodymium motors. The low-frequency section utilizes dual 2261 10” Differential Drive® 3” voice coil drivers.

Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.

The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit for the sub.

• Compact line array module optimized for permanent install applications
• Advanced technology component transducers for low weight and high output
• Outdoor IP55 rated enclosure for protection from dust and water
• Comprehensive rigging points for creating a line array configuration
• Fiberglass box construction and weatherized components
• Can be bi-amplified for maximum SPL, or fed passively for reduced amplification costs
• 100° horizontal coverage pattern

• Product Data Sheet
