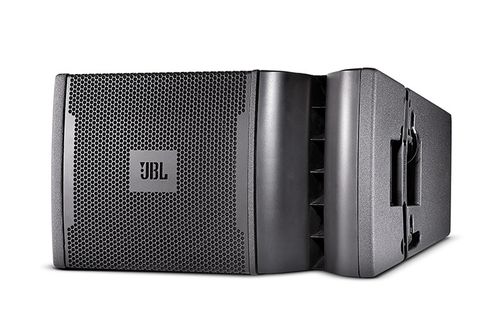

JBL 12 in. Two-Way Powered Line Array Loudspeaker System - VRX932LAP

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

12 in. Two-Way Powered Line Array Loudspeaker System

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

Features

Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
Constant Curvature waveguide for unprecedented array coherence.
Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
Array Configuration Selector permits "array shading".

Specifications

Power Rating	1750 Watts Peak 875 Watts Continuous
Frequency Range	57 Hz - 20 kHz (-10 dB)
Dimensions(H x W x D)	349 mm x 597 mm x 444 mm (13.75 in x 23.5 in x 17.5 in)
Frequency Response	75 Hz - 20 Hz (+/-3db)
Maximum Peak Output	136 dB SPL at 1m
Coverage Pattern	100 x 15 nominal
DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance)	LF: 750 Watts, HF: 125 Watts
DPC-2 Output Sectoin	LF: Dual-Bridged Technology™, Class D
Audio Input Connector	XLR with loop through
LF Driver	1 x JBL 2262FF 305 mm (12 in) neodymium magnet
HF Driver	3 x JBL 2408J, 38 mm (1.5 in)
User Controls	Input Attenuator (0-16 dB)
Signal Processings	DSP based, resident in Input Module
AC Power Operating Range	90-132 VAC or 216-264 VAC, 50/60 Hz
AC Input Connector	Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector	Neutrik PowerCon (NAC 3MPB)
AC Current Requirements	6A per system at 120V, 3A per system at 240V
Enclosure	25/15 mm, 11-ply birch plywood
Suspension / Mounting	Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
Finish	Black DuraFlex™ finish
Grille	Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
Net Weight	24 kg (52 lb)
Optional Accessories	VRX-AF: Suspension array frame
