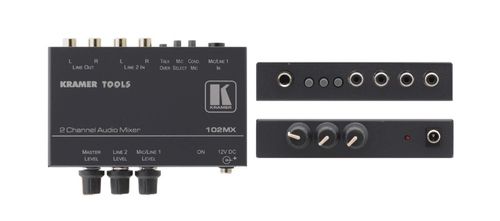

Kramer 2 Channel Audio Mixer - 102MX

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

2–Channel Stereo Audio Mixer

The 102MX is a high-performance 2-channel stereo audio mixer for line level and mic level audio signals. It mixes one line level input with either a microphone or a second line level input and produces a mixed audio output signal.

Key Features

S/N Ratio - 69dB.
Level (Gain) Control - Line 1 (or microphone), line 2, and master level.
Selectable Microphone Input - Dynamic or condenser microphone with bias voltage.
Talkover Button - Microphone input signal mutes line audio output when a microphone detects sound.
Compact Kramer TOOLS™ - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUTS	Mic/line 1: 10mV/1.6k?, 1Vpp/10k?, on a 6.5mm phone connector Line 2: 1Vpp/10k?, stereo on RCA connectors
OUTPUTS	Line level, stereo, up to 5.6Vpp/150? on RCA connectors
BANDWIDTH (-3DB)	100kHz
GAIN RANGE	–12dB to 68.5dB (mic) - 12dB to +8.8dB (line)
DIFF. PHASE	0.05Deg
S/N RATIO	69dB
CONTROL	Mic/line 1 level, line 2 level, master level rotary controls, condenser/dynamic mic, line/mic, talkover selection switches
AUDIO THD+NOISE	0.018%
2ND HARMONIC	0.002%
POWER CONSUMPTION	12V DC, 40mA
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
