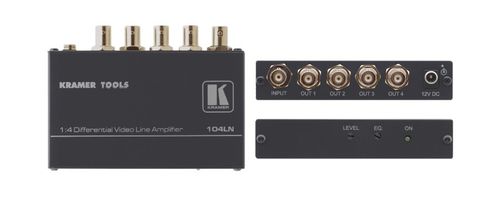

Kramer 1:4 Composite Video Differential & Line Amplifier - 104LN

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:4 Composite Video Differential Line Amplifier

The 104LN is a high-performance line amplifier for composite or SDI video signals. It includes differential circuitry to help eliminate noise often found on the input cable in a long run.

Key Features

High Bandwidth - 423MHz (–3dB).
Differential Circuitry - Reduces noise & hum found in long cable runs.
Level (Gain) and EQ (Peaking) Controls.
Compact Kramer TOOLS™ - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUT	1 composite/SDI video, differential, 1Vpp/75? on a BNC connector
OUTPUTS	4 composite/SDI video, 1Vpp/75? on BNC connectors
MAX. OUTPUT LEVEL	1.6Vpp
BANDWIDTH (-3DB)	423MHz
DIFF. GAIN	0.22%
DIFF. PHASE	0.1Deg
K-FACTOR	<0.05%
S/N RATIO	73.3dB
CONTROL	Level: - 1.3 to 6dB EQ. 0 to 10.2dB
COUPLING	DC
POWER CONSUMPTION	12V DC, 95mA
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.5lbs) approx.
SHIPPING DIMENSION	23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.2lbs) approx.
