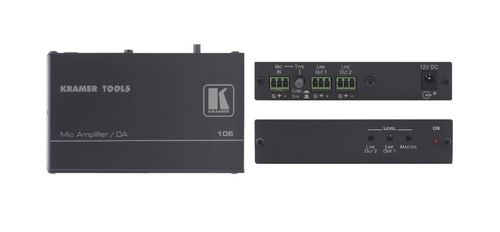

Kramer 1:2 Microphone Line & Distribution Amplifier - 106

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

1:2 Microphone to Line Distribution Amplifier

The 106 is a high?quality distribution amplifier for balanced mono microphone signals. It takes one dynamic or condenser microphone input and distributes the signal to two line?level outputs.

Key Features

Mic Input Selector - Condenser or dynamic.
Phantom Power - 48V DC.
S/N Ratio - 81dB.
Level (Gain) Controls - Individual and master output adjustments.
Compact Kramer TOOLS™ - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUT	1 balanced mono microphone on a 3–pin terminal block connector
OUTPUTS	2 balanced mono line outputs on 3–pin terminal block connectors
MAX. OUTPUT LEVEL	27Vpp (22dBu)
BANDWIDTH	>40kHz
S/N RATIO	81dB
CONTROLS	Mic. type selector pushbutton, - 14dB to +68dB LINE OUT trimmers (master trimmer at max.), +37dB to +68dB master trimmer (line out trimmer at max.)
COUPLING	Input, AC output, DC
INPUT IMPEDANCE	~10k?
OUTPUT IMPEDANCE	50?
GAIN	Up to 68dB
AUDIO THD + NOISE	0.18%
AUDIO 2ND HARMONIC	0.16%
POWER CONSUMPTION	12V DC, 220mA
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
