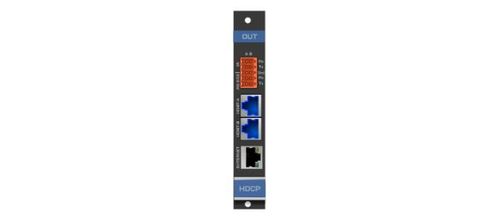

Kramer 2 channels HDBT Output Card for Frame 16 - HDBT-OUT2-F16/STANDALONE

Kramer HDBT-OUT2-F16 2-Output HDMI over HDBaseT Card (F-16) for VS-1616 Series Switchers

The Kramer HDBT7-OUT2-F16 is a two-channel 4K60 4:2:0, long reach, HDBaseT output card for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. The HDBT7-OUT2-F16 outputs two long reach HDBaseT signals with bidirectional RS-232 and IR from the chassis to the line.

• Max. Data Rate - 10.2 Gbps (3.4 Gbps per graphic channel).
• Max. Range - 40m (130ft) - 4K60 4:2:0 or 4K30 4:4:4; 70m (230ft) - 1080p 12bit (deep color). Note: When using Kramer HDBaseT cables.
• HDTV Compatible.
• HDCP Compliant.
• 3D Pass-Through.
• Bidirectional RS-232 and IR per Port.
• Kramer Equalization and re-Klocking Technology.

• Product Data Sheet
