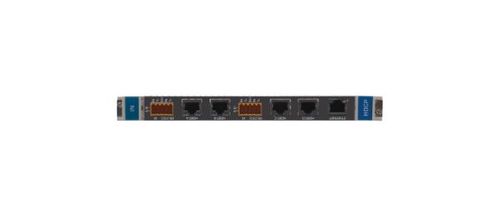

Kramer 4 channels HDBT Input Card for Frame 32 - HDBT-IN4-F32/STANDALONE

Kramer 4–Channel HDMI over Extended Reach HDBaseT Input Card

HDBT?IN4?F32 is a four?channel HDMI, bidirectional RS?232, Ethernet, & IR over HDBaseT twisted pair receiver card for the VS?3232 Series Modular Multi?Format Digital Matrix Switchers. The HDBT?IN4?F32 inputs four extended reach HDBaseT signals with bidirectional RS?232, Ethernet, and IR from the line to the chassis.

• Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
• HDBaseT Technology - HDTV compatible, HDCP compliant.
• 3D Pass-Through
• System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) ultra?mode (1080p @60Hz @24bpp).
• Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
• Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.

• Product Data Sheet
