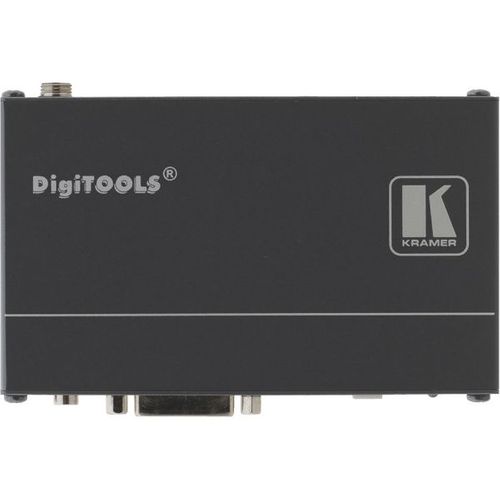

Kramer Computer Graphics over DGKat Twisted Pair Transmitter - SID-DVI

Kramer SID-DVI

The SID?DVI is a DGKat™ twisted pair transmitter and step?in commander for DVI and unbalanced stereo audio signals. The unit includes a “Step?In” button that allows the local source to be routed as the active source on the main display through the main switcher.

• HDTV Compatible.
• HDCP Compliant.
• Control - Step?in button and contact closure
• DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables
• Cable - Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer's BC?DGKat623 or BC?DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non?Kramer CAT 6 and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
• Compatible Switcher - VP?81SIDN.
• Power Connect™ System - A single connection to the VP?81SIDN Switcher can power the unit
• Compact DigiTOOLS® - 3 units can be rack mounted side?by?side in a 1U rack space with the optional RK?3T rack adapter.

• Product Data Sheet
