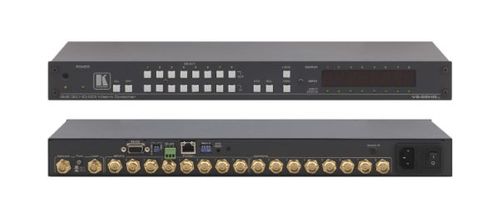

Kramer 8x8 3G SD/HD-SDI Matrix Switcher - VS-88HDXL/110V

Kramer Electronics - VS-88HDXL/110V; 8x8 3G SD/HD-SDI Matrix Switcher

The VS-88HDxl is a high-performance matrix switcher for 3G HD-SDI and HD-SDI dual link video signals. The unit can switch any or all inputs to any or all outputs. Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard, when using synchronized digital video sources.

• Max. Data Rate - 3Gbps
• Multi-Standard Operation - SDI (SMPTE 259M & SMPTE 344M), HD-SDI (SMPTE 292M), 3G
• HD-SDI (SMPTE 424M) and dual link HD-SDI (SMPTE 372M)
• Automatic Equalization Technology
• Looping Analog Sync Input
• Selectable Sync Signal Termination
• Flexible Control Options - Front panel, RS-232 (K-Router Plus™ Windows®-based software is included), RS-485, Ethernet, contact closure & IR remote (included)

• Product Data Sheet
