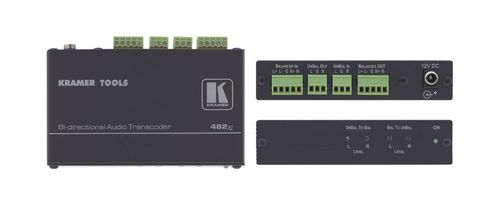

Kramer Balanced/Unbalanced Stereo Audio Transcoder - 482XL

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Balanced/Unbalanced Stereo Audio Transcoder

The 482xl is a high-performance audio transcoder for balanced and unbalanced stereo audio signals. It simultaneously converts balanced stereo signals to unbalanced stereo audio and unbalanced stereo audio signals to balanced stereo audio.

Key Features

Bidirectional Format Conversion - Balanced stereo audio to unbalanced stereo audio and unbalanced stereo audio to balanced stereo audio simultaneously.
Connectors - Terminal blocks (balanced & unbalanced).
Level (Gain) Control - Independent L & R adjustment while transcoding for both balanced to unbalanced conversion and unbalanced to balanced conversion.
S/N Ratio - 95dB balanced to unbalanced, 87dB unbalanced to balanced, unweighted.
Compact Kramer TOOLS™ - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUTS	1 unbalanced audio stereo on a 3–pin terminal block connector, 1 balanced audio stereo on a 5–pin terminal block
OUTPUTS	1 balanced audio stereo on a 5–pin terminal block connector, 1 unbalanced audio stereo on a 3–pin terminal block connector
MAX. OUTPUT LEVEL	Balanced: 21dBu unbalanced: 21dBu @max gain
BANDWIDTH (-3DB)	>100kHz
CONTROLS	–57dB to +6dB (balanced to unbalanced level) - 16dB to +19dB (unbalanced to balanced level)
COUPLING	Balanced to unbalanced: in=AC, out=DC Unbalanced to balanced: in=AC, out=DC
THD+NOISE	0.049%
2ND HARMONIC	0.005%
S/N RATIO	95dB/87dB balanced to unbalanced/unbalanced to balanced, unweighted
POWER CONSUMPTION	12V DC, 280mA (fully loaded)
INCLUDED ACCESSORIES	Power supply, mounting bracket
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.5kg (1.1lbs) approx.
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
