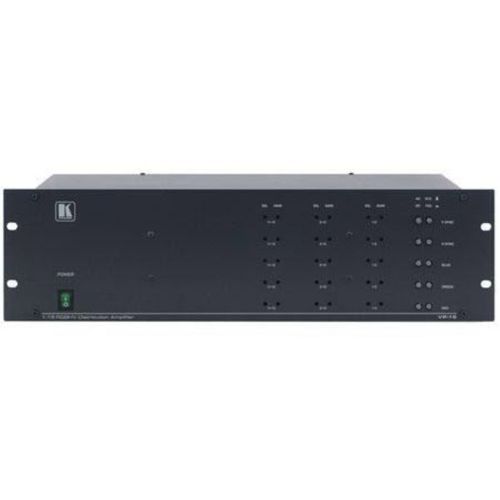

Kramer 1:15 RGBHV Video Distribution Amplifier - VP-15/110V

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Kramer AV VP-15/110V

The Kramer VP-15 is a high-performance distribution amplifier for RGBHV video signals. It provides correct buffering and isolation and distribute the signal to all identical outputs.

Key Features

High Bandwidth - 350MHz (-3dB)
HDTV Compatible
Grouped Level (Gain) and EQ (Peaking) Controls
Video AC/DC Coupling Selection
Selectable Input Signal Termination
Looping Input

Specifications

Input	Analog red, green, blue signals, 0.7Vpp/75 Ohm, H & V syncs, TTL or analog level on BNC connectors with termination switches and AC/DC input coupling selection switches
Output	10/15/18 sets of analog red, green, blue signals, 0.7Vpp/75 Ohm, H & V syncs, TTL or analog level on BNC connectors with termination switches and AC/DC input coupling selection switches
Video Bandwidth (-3dB)	350MHz
Diff. Gain	0.12%
Diff. Phase	0.15Deg
K-factor	<0.05%
Video S/N Ratio	71dB
Video Crosstalk	-65dB
Control	Output level -1.4 to +1.7dB; EQ. 0 to 2.3dB @5MHz for sets of 5 outputs
Power Source	230V AC, 50/60Hz, (115 VAC, USA), 7VA max
Dimensions	19" x 7" x 3U W x D x H rack mountable
