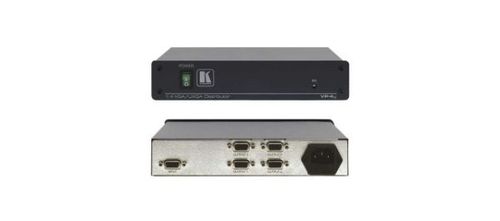

Kramer 1:4 Computer Graphics Video Distribution Amplifier - VP-4XL/110V

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Kramer VP-4XL/110V

The VP-4xl is a high-performance distribution amplifier for computer graphics video signals with-resolutions ranging from VGA through UXGA and higher. The unit takes one input, provides correct buffering and isolation, and distributes the signal to four identical outputs.

Key Features

High Bandwidth - 375MHz (- 3dB)
HDTV Compatible
EQ (Peaking) Control
ID Bit Control
Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-80 adapter

Specifications

Applications	Any professional system requiring high quality VGA/UXGA distribution to multiple monitors and/or projectors. Larger distribution systems, made by easily cascading several machines
Input	1 VGA/UXGA input on a 15-pin HD (F) connector
Output	4 VGA/UXGA on 15-pin HD (F) connectors
Bandwidth (-3db)	375MHz
Max. Output Level	1.9Vpp
Diff. Gain	0.0012
Diff. Phase	0.28Deg
K-factor	<0.05%
S/N Ratio	73.7dB
Controls	EQ: 0 to 6.6dB at 50MHz
Coupling	DC
Power Consumption	100-240V AC, 50/60Hz, 4.3VA
