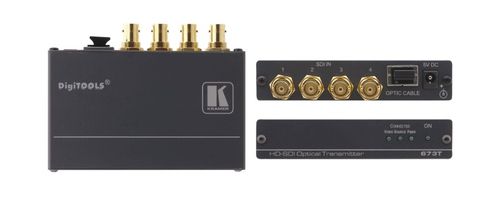

Kramer 3G HD-SDI over Fiber Optic Transmitter & Receiver - 673R/T

4x3G SDI Rx/Tx Extender over Ultra–Reach MM Fiber

The 673T and 673R are a high?performance fiber optic transmitter and receiver for video signals up to 3G HD?SDI and dual link HD?SDI signals. The 673T converts up to four channels of SDI signals on BNC connectors to an optical signal that is transmitted over a single fiber optic cable. The 673R converts the optical signal back to SDI signals.

• Max. Data Rate - Up to 3Gbps for each SDI input.
• HDTV Compatible.
• Multi–Standard Operation - SDI (SMPTE 259M), 3G HD–SDI (SMPTE 424M) and dual–link HD–SDI (SMPTE 372M).
• Laser Standards Compliance - IEC 60825–1, FDA 21CFR1040; Laser Class 1: Safety of laser products.
• System Range - 1000m (more than 3200ft).
• Fiber Cable - A single multi–mode OM3 fiber optic cable with SC connectors.
• Reclocking and Equalization per Channel.
• Indicators - Fiber Optic, Source & Input Indication LEDs.
