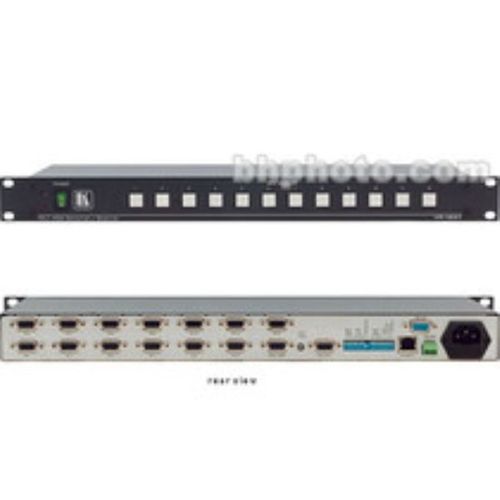

Kramer Presentation Switcher/Scaler - VP-690/110V

Kramer VP-690/110V

The VP?690 is a high?performance presentation scaler/switcher for 3G HD?SDI, HDMI, computer graphics, composite video and component video signals. The unit scales the video up to WUXGA & 2048x1080 and outputs the signal to HDMI (with embedded audio), computer graphics and RGBHV video outputs (with S/PDIF and unbalanced stereo audio) simultaneously

• K-Storm™ Scaling Technology - Kramer’s extremely high?performance scaling technology. High?quality 3:2 and 2:2 pull down de?interlacing and full up? and down?scaling of computer graphics video input signals
• Max. Data Rate - 3Gbps (3G HD?SDI).
• Multi-Standard Operation - SDI (SMPTE 259M), HD?SDI (SMPTE 292M) and 3G HD?SDI (SMPTE 424M)
• HDTV Compatible
• HDCP Compliant - The HDCP (High Definition Content Protection) license agreement allows copy?protected data on the HDMI input to pass only to the HDMI output
• Video Inputs - 1 SD/HD/3G HD?SDI (BNC), 2 HDMI, 2 VGA (15?pin HD), 2 composite video (RCA) & 2 component video (RCA)
• Looping 3G HD-SDI Input
• Scaled Outputs - 1 HDMI, 1 RGBHV (BNC connectors), 1 VGA (15?pin HD connector) simultaneously.
