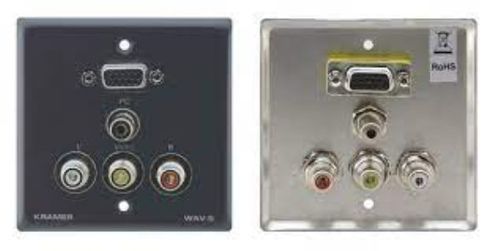

Kramer Passive Wall Plate - 15-pin HD, 3.5mm & 3 RCA - WAV-5/US(G)

Kramer WAV-5/US(G)

The WAV-5 is a passive wall plate with 15-pin HD female, 3.5mm female & 3 RCA female front panel connections and 15-pin HD female, 3.5mm female & 3 RCA female rear panel connections. This one-gang wall plate insert with pass through connectors for computer graphics video on an HD15 connector and unbalanced stereo audio on a 3.5mm mini plug connector. Video (composite or SDI) on a yellow RCA connector and unbalanced stereo audio on RCA connectors (white for L and red for R).

• Audio - U
• Front Panel Connections - 15-pin HD (F), 3.5mm (F) & 3 RCA (F)
• Rear Panel Connections - 15-pin HD (F), 3.5mm (F) & 3 RCA (F)
• Dimensions - 6.9cm x 2.1cm x 11.4cm (2.71" x 0.82" x 4.49") US
• Optional - RK-121WP 19" rack adapter (for EU size wall plates only)
• Available in gray, white & off-white

• Product Data Sheet
