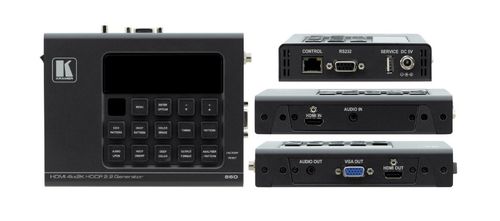

Kramer 4K UHD HDMI Pattern Generator & Analyzer - 860

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

18G 4K HDR Signal Generator & Analyzer

860 HDMI 18G (6G per graphic channel) 4K HDR Signal Generator & Analyzer is an advanced and handy tool for generating, testing and verifying the signal path within your (up to) 4K@60Hz (4:4:4) HDMI 2.0/HDCP 2.2 ecosystem. With 88 built?in resolutions, 55 test patterns and over a dozen types of AV analysis functions, this unit provides an enormous range of testing options. HDMI data packet, EDID and HDCP analysis is supported along with EDID upload and emulation. Additionally the Status and Control Data Channel (SCDC) can be monitored, enabling HDMI 18G signal detection and analysis. Up to 8 channels of LPCM audio test tones can be generated with a wide range of frequencies and audio levels.

Key Features

Max. Resolution - 4K@60Hz (4:4:4).
Standards Compliance - HDR10, HDMI 2.0, DVI 1.0 and HDCP 1.4/2.2.
Data Path Analysis - Source and sink up to 18G HDMI signals (6G per graphic channel).
Analysis of HDMI Data Packet.
Analysis & Control of HDCP v1.4 and v2.2.
Analysis & Emulation of EDID Data - Including SCDC.
Analysis of Input Audio Signals.
HDR Bypass & Analysis Support.
HDMI Timing Generation - Up to 4096×2160 @60Hz (4:4:4), 8–bit.
VGA Output Supports - 350p, 480p, 576p, 720p, 1080i, 1080p, 640×480, 800×600, 1024×768, 1280×1024, 1366×768, 1400×1050, 1440×900, 1600×900 (Reduced Blanking; RB), 1600×1200, 1680×1050, 1920×1200 (RB), 2048×1080p.
HDMI Output Supports - 350p, 480p, 576p, 720p, 1080i, 1080p, 640×480, 800×600, 1024×768, 1280×1024, 1366×768, 1400×1050, 1440×900, 1600×900 (RB), 1600×1200, 1680×1050, 1920×1200 (RB), 3G4K, 6G4K.
Custom User Test Patterns - 640×480 & 1920×1080.
External Stereo Audio Input & Output.
LPCM Sinewave Audio Generation - Up to 8 channels.
Control Options - Front–panel, RS–232, Telnet, and IR remote controls.
OLED Display - With rapid updates of current status information.
Detailed OSD - For settings and informational displays.
USB Firmware & Pattern Update.
Small & Portable Unit.

Specifications

INPUTS	1 HDMI, 1 unbalanced stereo audio (2Vrms max. 20k?) on a 3.5mm jack, 1 RS–232 on a 9–pin D–sub connector, 1 Ethernet on an RJ–45 connector, 1 USB connector
OUTPUTS	1 HDMI, 1 VGA on a 15–pin HD connector, 1 unbalanced stereo audio (2Vrms max. 560?) on a 3.5mm jack
COMPLIANCE WITH HDMI STANDARD	HDR10, HDMI 2.0 and HDCP 2.2
CONTROLS	Panel buttons with OLED display, OSD, RS–232, IR, and Ethernet
MAXIMUM DATA RATE	18Gbps (6Gbps per graphic channel)
ESD PROTECTION	Human body model: ±8 kV (air–gap discharge), ±4 kV (contact discharge)
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–20° to +60°C (–4° to 140°F)
HUMIDITY	20% to 90%, RHL non–condensing
POWER CONSUMPTION	5V DC, 1.6A
POWER SUPPLY	5.2V/4A
CHASSIS MATERIAL	Metal
SAFETY REGULATORY COMPLIANCE	CE
INCLUDED ACCESSORIES	Remote control (LR–40), power supply, protective case
PRODUCT DIMENSION	16.50cm x 13.20cm x 3.00cm (6.50" x 5.20" x 1.18" ) W, D, H
PRODUCT WEIGHT	0.8kg (1.7lbs) approx.
SHIPPING DIMENSION	30.50cm x 26.90cm x 14.70cm (12.01" x 10.59" x 5.79" ) W, D, H
SHIPPING WEIGHT	2.7kg (5.9lbs) approx.
