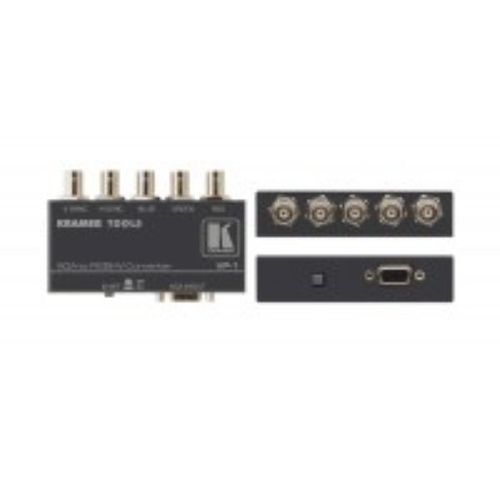

Kramer 15-pin HD to 5 BNC Bi-directional Format Converter - VP-1

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Kramer - VP-1

The VP1 is a high-performance passive format converter for all RGBHV and 15-pin HD connector applications. The VP1 converts 15-pin HD computer graphics video signals to five BNC RGBHV signals and vice versa.

Key Features

HDTV Compatible
ID Bit Control
Input: VGA/UXGA on a 15-pin HD (F) connector or RGBHV on BNC connectors
Outputs: RGBHV on BNC connectors or VGA/UXGA on a 15-pin HD connector
Bandwidth: (-3dB) 1800MHz (1.8GHz)

Specifications

Input	VGA/UXGA on a 15-pin HD (F) connector or RGBHV on BNC connectors
Outputs	RGBHV on BNC connectors or VGA/UXGA on a 15-pin HD connector
Max. Output Level	4Vpp/75?
Bandwidth (-3dB)	1800MHz (1.8GHz)
Controls	ID bit on/off
Dimensions	9.9cm x 4.65cm x 2.41cm (3.9" x 1.8" x 0.95") W, D, H
Weight	0.2kg (0.44lbs) approx
Compact Kramer TOOLS	Part of the Kramer TOOLS family of compact, high-quality and cost-effective solutions
