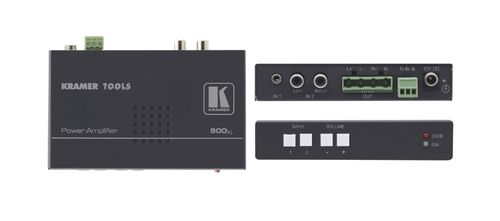

Kramer Stereo Audio Power Amplifier - 900XL

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Stereo Power Amplifier (10 Watts per Channel)

The 900xl is a high?performance power amplifier for line level stereo audio signals. The unit accepts unbalanced audio signals on either of two RCA or 3.5mm connectors and delivers a speaker output of 10 watts RMS per channel into a 4? load.

Key Features

High Efficiency - Class D operation.
S/N Ratio - 60dB.
Control - Volume & input selection from front panel & RS–232.
Compact Kramer TOOLS™ - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUTS	1 unbalanced stereo audio on a 3.5mm mini jack connector, 1 unbalanced stereo audio on RCA connectors
OUTPUT	1 stereo differential speaker output
OUTPUT POWER	2x10W (4?)
INPUT SENSITIVITY	460mV
OUTPUT MUSIC POWER	2x40W (4?) BANDWIDTH (-3DB) 25kHz
S/N RATIO	85dB @1kHz, 0dBu output
CONTROLS	Gain range: - 14 to +32dB at high–gain - 21 to +20dB at low–gain
COUPLING	Input: AC output: DC
AUDIO THD + NOISE	0.6% @0dBu output
AUDIO 2ND HARMONIC	0.35% @0dBu output
POWER CONSUMPTION	12V DC, 2.0A
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–45° to +72°C (–49° to 162°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.4lbs) approx.
