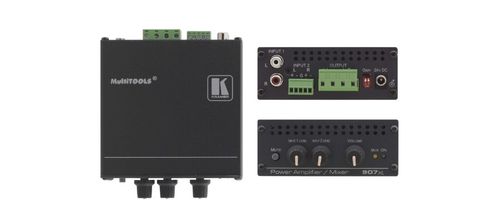

Kramer Stereo Audio Amplifier & Switcher (40 Watts per Channel) - 907XL

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Stereo Power Amplifier/Mixer (40 Watts per Channel)

The 907xl is a high?performance power amplifier for line?level stereo audio signals. It accepts a balanced stereo audio signal on a terminal block connector and an unbalanced stereo signal on RCA connectors. It delivers 40 watts per channel into an 8? load.

Key Features

High Efficiency - Class D operation.
Controls - 1 volume control knob for each input & mute button.
Gain Control DIP–Switches.
Mute and On Indicator LEDs.
Compact MultiTOOLS® - Up to 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–1 universal rack adapter.

Specifications

INPUTS	1 balanced stereo audio on a terminal block connector, 1 unbalanced stereo audio on RCA connectors
OUTPUT	Speaker output on a terminal block connector
OUTPUT POWER	40W per channel into 8?
OUTPUT MUSIC POWER	150W per channel into 8?
INPUT SENSITIVITY	1.2Vrms
AMPLIFIER TYPE	Class D
VOLTAGE GAIN	36dB (x10)
BANDWIDTH (-3DB)	25kHz
S/N RATIO	66dB
COUPLING	Inputs: AC, Outputs: DC
AUDIO THD + NOISE	1.2%
AUDIO 2ND HARMONIC	1%
POWER CONSUMPTION	24V DC, 2.2A
CONTROLS	2 gain DIP–switches, mute button, 2 input level knobs, 1 volume knob
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–1 19" rack mount adapter
PRODUCT DIMENSION	10.68cm x 10.35cm x 4.36cm (4.20" x 4.07" x 1.72" ) W, D, H
PRODUCT WEIGHT	0.4kg (0.8lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	1.3kg (2.9lbs) approx.
