Kramer Table Mount Modular Multi?Connection Solution - TBUS-10XL(BA)

Kramer Table Mount Modular Multi–Connection Solution — Manually Retracting Lid

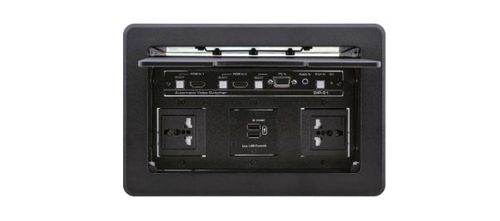

The TBUS?10xl is the enclosure of a new modular system with a manually retracting lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.

• Cover — Manually opens & closes.
• Inner Frames — T10F–22M can accommodate a combination of up to 2 power sockets, 2 inserts, 1 opening for a Kramer MegaTOOL SID–X1N; T10F–33 contains 3 power sockets and 3 inserts.
• Power Sockets — 11 different "TS" single and 10 dual power socket options are available to accommodate the power requirements worldwide.
• Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket. UL and CE qualified.
• Connector Depth — Adjustable.
• Installation Requirement — Table cutout of 245mm x 154mm (9.65" x 6.07").
• Dimensions — Top plate: 171.6mm x 261mm (6.8" x 10.3") W, D.

• Product Data Sheet
