Kramer Detachable DVI Optical Transmitter & Receiver - 610R/T(SET)/US

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

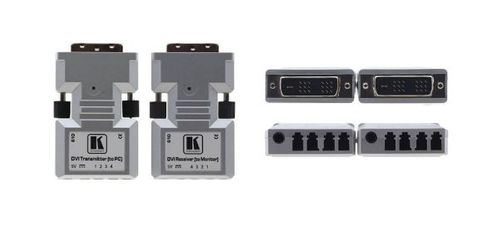

Kramer Electronics 610R/T(SET)/US DVI Rx/Tx Extender over Ultra-Reach MM Fiber

The 610T and 610R are a detachable optical transmitter and receiver for sending DVI signals with resolutions of up to 1920x1200 at 60Hz over LC optical cable. The 610T attaches to the transmitter side of a fiber optical cable and the 610R connects to the receiver end and both are sold as a set.

Key Features

Max. Data Rate 4.95Gbps (1.65Gbps per graphic channel).
Standards Compliance Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility).
HDTV Compatible.
Not HDCP Compliant.
System Range Up to 400m (1312ft).
EDID Capture Copies and stores the EDID from a display device (610T).

Specifications

Applications	Digital flat panel displays, plasma display panels and projectors for medical appliances, aero and traffic control, factory facilities, banks, conference rooms and auditoriums Kiosks with digital flat panel displays, for information display, LED signboards in streets and in stadiums, Digital Signage
Inputs	Single-link DVI-D on a DVI-I connector (610T); 4 LC optical connectors for R, G, B & clock (610R)
Outputs	4 LC optical connectors for R, G, B & clock (610T) single-link DVI-D on a DVI-I connector (610R)
Resolution	Up to WUXGA at 60Hz (1.65Gbps)
Humidity	Operating: 5% to 65%; Storage 5% to 95%
Power Consumption	5V DC, 240mA max. (610T); 390mA max. (610R)
