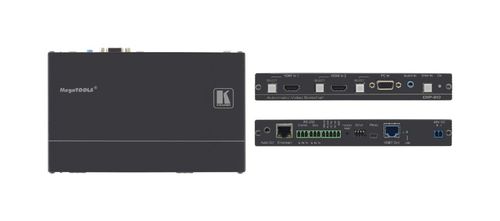

Kramer HDMI, VGA, RS?232, ETH & Audio over HDBaseT step-in commande - DIP-20

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4K60 4:2:0 HDMI & VGA Auto Switcher and PoE Provider over HDBaseT

DIP?20 is an extended reach 4K@60Hz (4:2:0), HDBaseT transmitter and Step?in commander for VGA video, HDMI, and unbalanced stereo audio embedding and de?embedding. DIP?20 accepts HDMI and VGA video input, an Ethernet signal, serial data, and an unbalanced stereo audio input (that is embedded into the output signal). It transmits the signal to an HDBaseT (twisted pair) cable to a compatible receiver (for example, the TP?588D or TP?580RXR).

DIP?20 is a PoE (Power over Ethernet) provider and can power compatible PoE acceptors (for example, TP?588D).

Key Features

Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
HDTV Compatible.
HDCP Compliant - Works with sources that support HDCP repeater mode.
HDMI Support - Deep Color, x.v.Color™ and 3D.
HDBaseT Certified.
Automatic Live Input Detection - Based on video clock presence.
Automatic Input Selection - Based on manual selection or last connected input.
Automatic Analog Audio Detection & Embedding.
I–EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
System Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables.
Data Equalization and Reclocking.
Local Balanced Audio De–Embedding.
Support for Digital Audio Formats.
Lockable EDID.
Local Step–In Switching - Button & contact closure.
Power Supply - Supports PoE to power a remote receiver (such as TP–588D). Requires independent power supply.

Specifications

INPUTS	2 HDMI on HDMI connectors, 1 VGA on a 15–pin HD (F) connector, 1 unbalanced stereo audio 1V RMS (nominal) on a 3.5mm mini jack
OUTPUTS	1 HDBaseT on an RJ–45 connector, 1 unbalanced stereo audio 1V RMS (nominal) on a 3.5mm mini jack
PORTS	1 Ethernet on an RJ–45 connector, 1 RS–232 3–pin terminal block control port, 1 RS–232 3–pin terminal block data port, 1 USB on mini USB connector
CONTROLS	Remote switches for input switching, step–in, volume control, and device reset switch
STANDARDS	HDMI with Deep Color, x.v.Color™ and 3D HDCP-works with sources that support HDCP repeater mode HDBT certified
MAXIMUM ANALOG AUDIO LEVELS	3.1Vpp
THD	0.013%
SNR	–75dBu
SUPPORTED WEB BROWSERS	Windows 7 and higher: Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35 MAC:Chrome version 35, Firefox version 27, Safari version 7; Android OS: Chrome version 35; iOS:Chrome version 35, Safari version 7
MAXIMUM TRANSMISSION DISTANCE	180m (590ft) up to 1080p @60Hz @24bpp in extended mode, 130m (430ft) up to 1080p @60Hz @36bpp in normal mode
POWER CONSUMPTION	48V DC, 630mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
COOLING	Convection
ENCLOSURE TYPE	Aluminium
ENVIRONMENTAL REGULATORY COMPLIANCE	Complies with appropriate requirements of RoHs and WEEE
INCLUDED ACCESSORIES	Power adapter 48V DC 1.36A, ADC–DPM/HF DisplayPort (M) to HDMI (F) adapter cable, power cord, DIP–20BP black panel
OPTIONS	RK–T2B 19" rack adapter, DIP–20BP black front panel for DIP–20
WARRANTY	7 years parts and labor
PRODUCT DIMENSION	18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H 18.80cm x 0.15cm x 2.50cm (7.40" x 0.06" x 0.98" ) W, D, H
PRODUCT WEIGHT	0.5kg (1.0lbs) approx.
SHIPPING DIMENSION	34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H 28.50cm x 10.50cm x 5.90cm (11.22" x 4.13" x 2.32" ) W, D, H
SHIPPING WEIGHT	1.2kg (2.6lbs) approx. 0.6kg (1.2lbs) approx.
