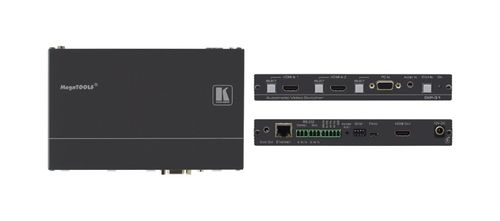

Kramer 4K UHD HDMI & Computer Graphics Automatic Video Switcher - DIP-31

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

4K60 4:2:0 HDMI & VGA Auto Switcher

The DIP?31 is a 4K@60Hz (4:2:0) automatic switcher for HDMI, VGA, Ethernet, data and unbalanced audio signals. It supports various modes of input selection and transmit the signal via HDMI cable to a compatible receiver (for example the VS?62H or a display/projector). The device is a Step?in commander when connected to a matrix switcher that supports Step?in over HDMI such as the VS?62H. It also features RS?232 commands to support monitor/projector on/off.

Key Features

Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
HDTV Compatible.
HDCP Compliant - With sources that support HDCP repeater mode.
HDMI Support - Deep Color, x.v.Color™ and 3D.
Automatic Live Input Detection - Based on video clock presence.
Automatic Input Selection - Based on priority selection or last connected input.
Manual Input Selection.
Step–in Support.
Automatic Analog Audio Detection & Embedding.
Convenient Control - Via Kramer Protocol 3000 and embedded Web pages over a LAN.
RS–232 Command Support.
I–EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.

Specifications

INPUTS	2 HDMI on HDMI connectors, 1 VGA on a 15–pin HD (F) connector, 1 unbalanced stereo audio 1V RMS (nominal) on a 3.5mm mini jack
OUTPUTS	1 HDMI connector, 1 unbalanced stereo audio 1V RMS (nominal) on a 3.5mm mini jack
PORTS	1 Ethernet on an RJ–45 connector, 1 RS–232 3–pin terminal block control port, 1 RS–232 3–pin terminal block data port (internal use), 1 USB on mini USB connector
CONTROLS	Remote switches for input switching, step–in, volume control, and device reset switch
STANDARDS	HDMI with Deep Color, x.v.Color™ and 3D, HDCP-works with sources that support HDCP repeater mode
MAXIMUM ANALOG AUDIO LEVELS	3.1Vpp
SNR	–70dBu
THD	0.013%
SUPPORTED WEB BROWSERS	Windows 7 and higher: Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35 MAC:Chrome version 35, Firefox version 27, Safari version 7; Android OS: Chrome version 35; iOS:Chrome version 35, Safari version 7
POWER CONSUMPTION	12V DC, 600mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
COOLING	Convection
ENCLOSURE TYPE	Aluminium
ENVIRONMENTAL REGULATORY COMPLIANCE	Complies with appropriate requirements of RoHs and WEEE
INCLUDED ACCESSORIES	Power supply, ADC–DPM/HF DisplayPort (M) to HDMI (F) adapter cable, (for connecting a DisplayPort source to the HDMI input), DIP–30BP black panel
OPTIONS	Rack adapter RK–T2B
WARRANTY	7 years parts and labor
PRODUCT DIMENSION	18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H 18.80cm x 0.15cm x 2.50cm (7.40" x 0.06" x 0.98" ) W, D, H
PRODUCT WEIGHT	0.4kg (0.9lbs) approx.
SHIPPING DIMENSION	34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H 28.50cm x 10.50cm x 5.90cm (11.22" x 4.13" x 2.32" ) W, D, H
SHIPPING WEIGHT	0.9kg (2.1lbs) approx. 0.6kg (1.2lbs) approx.
