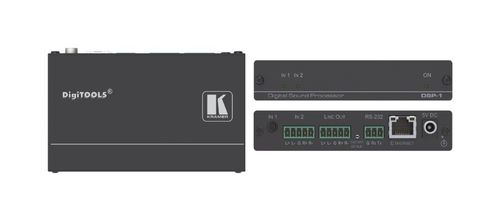

Kramer Mini Digital Sound Processor - DSP-1

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Mini Digital Sound Processor

DSP?1 is a digital sound processor that enables the control of individual volume per input, 3?band parametric EQ, selectable HPF (high?pass filters) at 70Hz and master volume via IP. DSP?1 is a small form factor and cost?effective solution suitable for a range of audio applications.

Key Features

2–Input Mixing with Master Volume.
3–Band Parametric Equalizer - Frequency, Q–factor & gain control per band.
Hi–Pass Filter - Selectable HPF at 70Hz.
Line–Level Amplifier for Audio Gain and Attenuation.
Control with Built–In Web Page & RS–232.
Creates & Saves Presets.
Highly Cost Effective.

Specifications

INPUTS	1 Balanced Stereo Audio: On a 5–pin terminal block connector 1 Unbalanced Stereo Audio: On a 3.5mm Mini Jack
OUTPUTS	1 Balanced Stereo Audio: On a 5–pin terminal block connector
PORTS	1 RS-232: On a 3–pin terminal block connector 1 Ethernet: On an RJ–45 connector
POWER	Consumption: 5V DC, 350mA
ACCESSORIES	Included: Power supply, mounting bracket Optional: RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.3lbs) approx.
