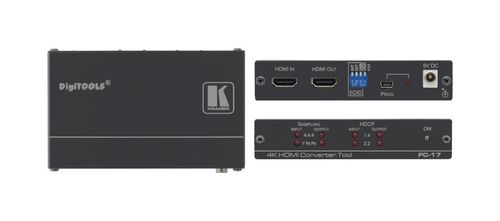

Kramer HDMI 4K 4:4:4 / 4:2:0 Converter With HDCP 1.4 & 2.2 - FC-17

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

HDMI 4K60 4:4:4 / 4:2:0 Converter with HDCP 1.4 & 2.2

FC?17 is a versatile HDMI 4K@60Hz (4:4:4/4:2:0) converter tool. FC?17 can convert from 4:4:4 to 4:2:0 color sampling and offers EDID management via a user?friendly Windows application. It also enables inter?operability between HDCP 2.2 and HDCP 1.4 systems. FC?17 acts as an HDMI extender that equalizes and reclocks TMDS data before re?transmitting, thus increasing the HDMI cable range from the output.

Key Features

Max. Resolution - 4K@60Hz (4:4:4).
HDMI Support - Up to HDMI 2.0.
HDCP 1.4 & 2.2 Compliant.
HDMI Embedded Audio.
Kramer Equalization & re–Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
EDID Options - Via DIP–switch setup: default (internal), external (sink) or user–defined.
LED Status Display.
USB Port - For application control and upgrading firmware.

Specifications

INPUTS	1 HDMI connector
OUTPUTS	1 HDMI connector
PORTS	1 mini USB connector
HDMI COMPLIANCE	1.4 / 2.0
HDCP COMPLIANCE	1.4 / 2.2
OUTPUT RESOLUTION	Up to 4K@60Hz (4:4:4)
CONTROL	DIP–switches: EDID and color space selection
INDICATORS	SAMPLING and HDCP LEDs for input and output, ON to indicate power to unit (green) or successful USB link (red)
POWER SOURCE	5.2V DC/4A power supply unit
POWER CONSUMPTION	5V DC, 800mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
DIMENSIONS	12 cm x 7.15cm x 2.44cm (4.72" x 2.8" x 0.96") W, D, H
SHIPPING DIMENSIONS	15.7cm x 12cm x 8.7cm (6.18" x 4.72" x 3.43") W, D, H
WEIGHT	0.15kg (0.33lb)
SHIPPING WEIGHT	0.55kg (1.21lb)
INCLUDED ACCESSORIES	Power supply
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.3lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.2lbs) approx.
