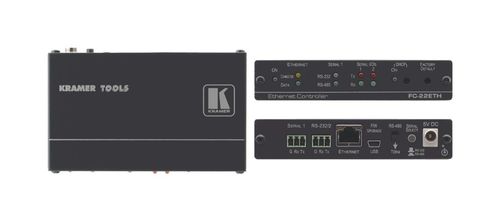

Kramer Ethernet to serial 2-port converter - FC-22ETH

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

2–port Serial Control Gateway

The FC?22ETH is an Ethernet control gateway, capable of plug and play deployment over customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS?232 or RS?485 serial control connections. Multiple control clients can be IP?connected to the FC?22ETH control gateway for concurrent control of two RS?232 or RS?485 controllable devices, such as AV scalers, video displays, and audio amplifiers.

Key Features

1 RS–485 or RS–232 Selectable Bidirectional Control Port - Controls a device via bi–directional serial control protocols.
1 RS–232 Bidirectional Control Port - Controls a device via bidirectional RS–232 serial control protocols.
1 Ethernet Control Port - Remote protocol–based control port.
Built–in Web Pages - Remote browser–based control and support.
Simultaneous IP Control Communication - With up to 40 IP control clients.
Mini USB Port - For firmware upgrades and local technical services.
Easy Installation - Plug & play IP auto–setup deployment for simple and cost–reducing installation.

Specifications

PORTS	1 RS–232/RS–485 selectable and 1 RS–232 serial on 3–pin terminal blocks, 1 Ethernet on an RJ–45 connector, 1 mini USB connector for local services
SUPPORTED SERIAL PORT BAUD RATES	1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
RS-232 COMMUNICATION	Transparent up to 115200bps
MAXIMUM DATA HANDLING OF DEVICE	Up to 150kbps summed on all ports
CONTROLS	Serial Select button, RS–485 terminator switch, DHCP and Factory Default buttons
INDICATORS	Power, Ethernet, Serial 1, Serial I/O, and DHCP status LEDs
POWER CONSUMPTION	5V DC, 200mA
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
COOLING	Convection
ENCLOSURE TYPE	Aluminum
INCLUDED ACCESSORIES	Power adapter
VIBRATION	ISTA 1A in carton (International Safe Transit Association)
SAFETY REGULATORY COMPLIANCE	CE
ENVIRONMENTAL REGULATORY COMPLIANCE	Complies with appropriate requirements of RoHs and WEEE
OPTIONS	RK–3T 19" rack adapter, serial cables: C–D9F/OPEN–3/6/10/15/25/35/50, BC–1T–300M bulk cable
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.2kg (0.4lbs) approx.
SHIPPING DIMENSION	15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT	0.4kg (0.9lbs) approx.
