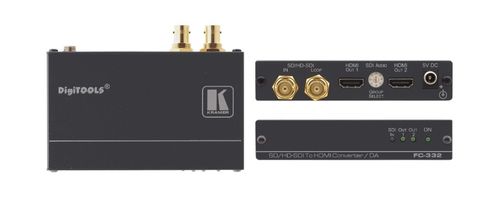

Kramer 3G HD-SDI to HDMI Format Converter - FC-332

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

3G HD–SDI to HDMI Format Converter

The FC-332 is a high-performance format converter for video signals up to 3G HD-SDI. The unit converts the input video format (with embedded audio) to two HDMI outputs.

Key Features

HDTV Compatible.
Looping Input.
Multi–Standard Operation - SDI (SMPTE 259M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M) compliance and support for data rates of 270Mbps, 1483.5Mbps, 1485Mbps and 2970Mbps.
Embedded Audio Group Select Rotary Switch.
Active Input Indication™ Reporting - Green indicates a standard definition (SDI) input signal and blue indicates a high definition (HD–SDI) input signal.
Compact DigiTOOLS™ - 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.

Specifications

INPUT	1 SD/HD/3G HD–SDI with loop on BNC connectors
OUTPUTS	2 HDMI connectors
MAX. DATA RATE	Up to 3Gbps
STANDARD COMPLIANCE	HDMI
INDICATOR LEDS	SD/HD, OUT, ON
POWER CONSUMPTION	5V DC, 510mA
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–3T 19" rack adapter
PRODUCT DIMENSION	12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT	0.3kg (0.7lbs) approx.
SHIPPING DIMENSION	23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT	0.6kg (1.3lbs) approx.
