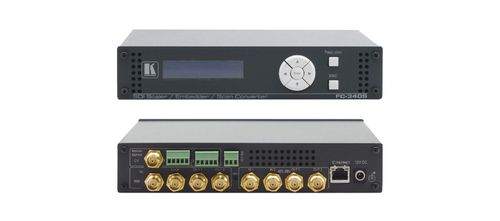

Kramer 3G HD?SDI/HD-SDI/SDI Cross Conve-r w/Audio Embedder & DeEmbe - FC-340S

This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

3G HD–SDI Scaler/Embedder/Scan Converter

The FC-340S is a broadcast-quality video scaler and audio embedder/de-embedder for digital signals up to 3G HD-SDI. The unit inputs SDI and AES/3id signals and simultaneously outputs two SDI and composite video signals while the audio embedded in the SDI input signal is output to both AES/3id and balanced stereo audio outputs.

Key Features

Max. Data Rate - 3Gbps.
HDTV Compatible.
Multi–Standard Operation - SDI (SMPTE 259M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
Looping Video Input.
Kramer Equalization & re–Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
Embedding Options - Selects embedded audio or embeds two independent audio groups.
Flexible Control Options - Front panel with 2–row LCD, Ethernet & RS–232.

Specifications

DIGITAL INPUTS	1 SD/HD/3G HD–SDI with loop, 75? on BNC connectors 2 AES–3id audio on BNC connectors
DIGITAL OUTPUTS	2 SD/HD/3G HD–SDI, 75? on BNC connectors 2 AES–3id audio on BNC connectors
ANALOG OUTPUTS	1 composite video on a BNC connector, PAL/NTSC (according to output frame rate) 2 balanced stereo audio on 5–pin terminal blocks
MAX. DIGITAL VIDEO INPUT/OUTPUT LEVEL	800mVpp/75?
SAMPLE CONVERSION RATE	48kHz (digital audio)
BANDWIDTH	20kHz (analog audio)
INPUT RESOLUTIONS	480i @59.94, 576i @50, 720p @59.94/60/50, 1080i @59.94/60/50, 1080p @29.97/30/23.98/24, 23.98sF/24sF, 1080p @59.94/60/50
OUTPUT RESOLUTIONS	480i @59.94, 576i @50, 72p @59.94/60/50, 1080i @59.94/60/50, 1080p @59.94/60/50
POWER CONSUMPTION	12V DC, 1A
OPERATING TEMPERATURE	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE	–40° to +70°C (–40° to 158°F)
HUMIDITY	10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES	Power supply
OPTIONS	RK–1 19" rack adapter
PRODUCT DIMENSION	21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT	1.0kg (2.2lbs) approx.
SHIPPING DIMENSION	35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT	1.6kg (3.6lbs) approx.
