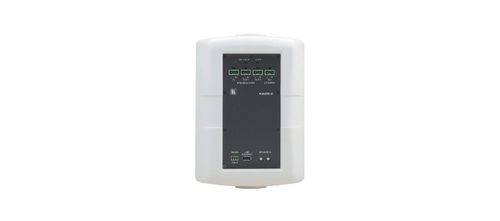

Kramer Kramer Audio Distribution System – On-Wall 5" Speaker - KADS-2

Controllable Powered Speaker

The KADS?2 is an active speaker with multi?channel, digital audio, control and power provided over a single cable. Used in conjunction with the KADS?100 controller, up to ninety?nine KADS?2 speakers can be connected in tree and branch configurations. The KADS?2 has two outputs that can be connected to either a KADS?1 or a KADS?2 up to 30m away with a total of sixteen speakers, eight per chain. The KADS?2 also has a power input for extending a chain beyond 30m for a further eight speakers in the chain.

• High–Resolution Audio Support.
• Highly Flexible Layout Options - Up to 99 speakers (8 per branch). Additional branches/speakers require an optional power supply for each 8 speakers.
• Control - Via the KADS–100 controller.
• Speaker ID - Set unique ID on each speaker for control from KAD–100 Controller.
• USB - For firmware upgrades.
• Built–in 25 Watt Power Amplifier - Power via KADS–100 controller for 8 speakers.
• Range - 30m (100') between speakers with a 240m (800') total system range without additional power supplies.
